Description

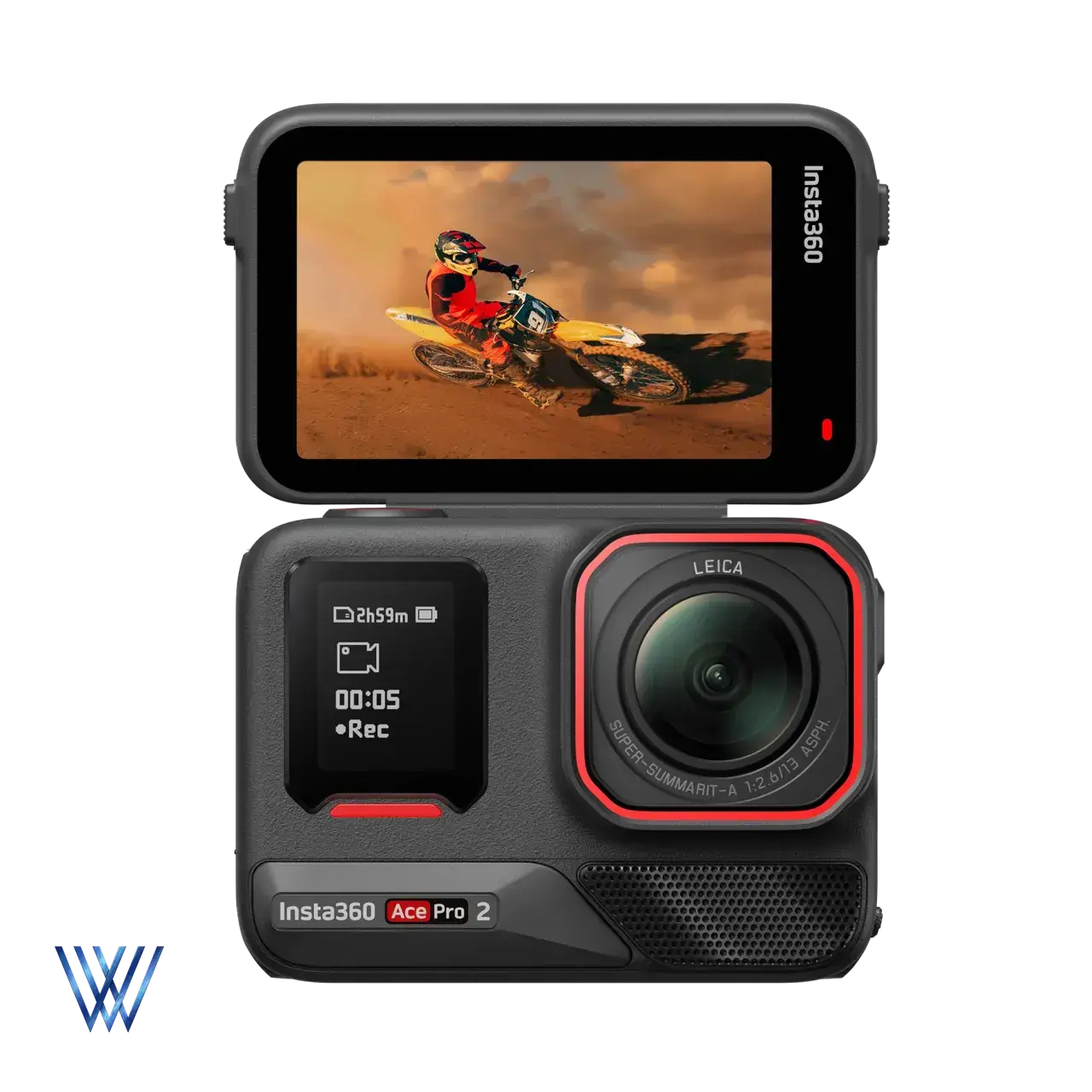

Insta360 Ace Pro 2
Key Specifications
- 1/1.3" 8K sensor with 13.5 stops of dynamic range
- Leica SUMMARIT lens, F2.6, 157° field of view
- 8K30fps video and 4K60fps Active HDR
- Dual AI chip: Pro Imaging Chip + 5nm AI chip
- PureVideo low light mode
- 50MP photos
- Flip touchscreen with 2x Clarity Zoom
- 1800mAh battery, up to 180 mins run time
- Fast charging: 80% in 18 mins
- Waterproof to 39ft (12m)
- Weight 184g
- Warranty: 1 Year Official Warranty
Product Description
Insta360 Ace Pro 2 is Insta360's flagship action camera co engineered with Leica. A 1/1.3" 8K sensor and the Leica SUMMARIT lens record 8K30fps video and 4K60fps Active HDR, while a dual AI chip handles noise reduction and image processing. It comes in Midnight Black with a single or dual battery and in Arctic White with a single battery, in the Standard, Motorcycle, Motovlog, Xplorer Pro, Xplorer, Flash Print, Bike, Winter, POV, Get Set, On the Go and Ultimate Videography bundles, plus the Videography Bundle Limited Edition and the SuperMotocross Edition.
1/1.3" 8K Sensor and Leica SUMMARIT Lens
The new generation 1/1.3" 8K sensor gives 13.5 stops of dynamic range and a 2.4μm equivalent pixel size. The Leica SUMMARIT lens has an F2.6 aperture and a 157° field of view.
Dual AI Chip
Ace Pro 2 is the first action camera with a dedicated imaging chip for noise reduction and image processing, plus a 5nm AI chip, for 100% more computing power than Insta360 Ace Pro.
8K30fps and 4K60fps Active HDR
Record 8K30fps video full of detail, or 4K60fps with Active HDR for smooth footage with rich dynamic range.
PureVideo for Low Light
PureVideo mode reduces noise while enhancing brightness and details for clear night and low light footage.
Flip Touchscreen and Clarity Zoom
The flip touchscreen makes framing easy from the front or back, and Clarity Zoom lets you zoom in 2x without losing image quality.
Wind Guard and Clear Audio
A new Wind Guard and advanced audio algorithms keep wind noise at a minimum, with Wind Reduction, Voice Enhancement and Stereo audio modes.
180 Minutes Run Time and Fast Charging
The 1800mAh battery runs up to 180 minutes, charges to 80% in 18 minutes and fully charges in 47 minutes with a 30W adapter.
AI Highlights Assistant and Leica Colours
AI Highlights Assistant finds the best moments of a video in camera, and Leica colour profiles give your footage a signature look.
Technical Specifications
| Sensor Size |
1/1.3" |
| Aperture |
F2.6 |
| 35mm Equivalent Focal Length |
13mm |
| Video Resolution |
8K (16:9): 7680x4320@30/25/24fps; 8K (2.35:1): 7680x3272@30/25/24fps; 4K (4:3): 3840x2880@60/50/48/30/25/24fps; 4K (16:9): 3840x2160@120/100/60/50/48/30/25/24fps; 2.7K (16:9): 2688x1520@120/100/60/50/48/30/25/24fps; 1080p (16:9): 1920x1080@240/200/120/100/60/50/48/30/25/24fps |
| Active HDR |
Up to 4K60fps |
| PureVideo |
4K (4:3): 3840x2880@30/25/24fps; 4K (16:9): 3840x2160@60/50/48/30/25/24fps; down to 1080p |
| FreeFrame Video |
4K (4:3): 4096x3072@60/50/48/30/25/24fps; 2.7K; 1440p |
| Slow Motion |
4K@120/100fps; 2.7K@120/100fps; 1080p@240/200/120/100fps |
| Photo Resolution |
50MP (8192x6144), 37MP, 28.5MP, 12.5MP, 9MP, 7MP |
| Video Format |
MP4 |
| Photo Format |
JPG, DNG RAW |
| Video Modes |
Video (built in Active HDR), FreeFrame Video, PureVideo, Slow Motion, Timelapse, TimeShift, Loop Recording, Road Mode, Pre Recording |
| Photo Modes |
Photo (optional HDR), Interval Photo, Starlapse, Burst Photo |
| Log Profile |
I Log |
| Video Coding |
H.264, H.265 |
| Max. Video Bitrate |
180Mbps |
| Exposure Value |
±4EV |
| ISO Range |
100 to 6400 |
| Shutter Speed |
Photo: 1/8000 to 120s; Video: 1/8000, to the limit of frames per second |
| White Balance |
Auto, 2000 to 10000K |
| Audio Modes |
Wind Reduction, Voice Enhancement, Stereo |
| Audio Format |
48 kHz, 16 bit, AAC |
| Weight |
184g (6.5 oz) |
| Dimensions (W x H x D) |
73.2 x 53.7 x 39.5mm |
| MicroSD Card |
No built in storage; supports microSD cards up to 1TB |
| Battery Capacity |
1800mAh |
| Charging Time |
47 mins (30W fast charging adapter), 75 mins (5V/3A) |
| Run Time |
180 mins (1080p24fps, Endurance Mode) |
| Operating Temperature |
-20°C to 45°C |
| Waterproof |
39ft (12m) |
| Bluetooth |
BLE 5.2 |
| WiFi |
2.4GHz, 5GHz 802.11 a/b/g/n/ac |
| USB |
USB C 3.0 |
| Gyroscope |
6 axis gyroscope |
| Colours |
Midnight Black, Arctic White |
| Warranty |
1 Year Official Warranty |
In the Box
- 1x Insta360 Ace Pro 2
- 1x Wind Guard (pre installed by default)
- 1x or 2x Batteries (Single / Dual Battery edition)
- 1x Standard Mount
- 1x Mic Cap
- 1x USB C Cable
- (Standard Bundle. Other bundles add the accessories listed under Available Configurations.)

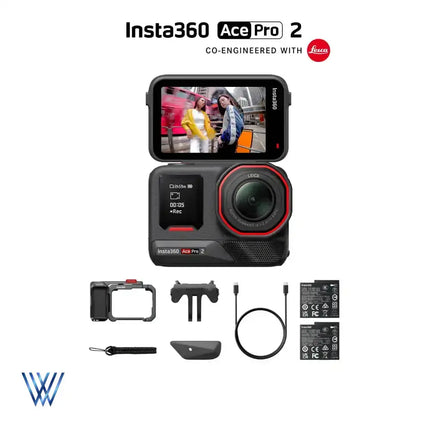

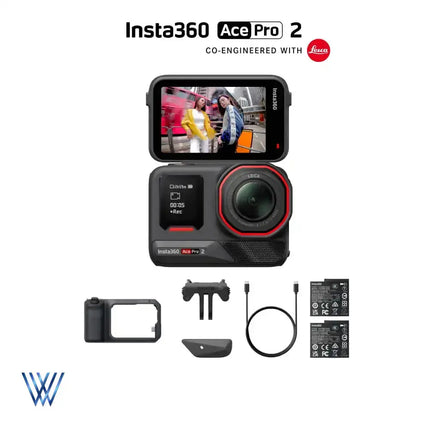

Available Configurations
-
Standard Bundle with Single Battery: 1x Insta360 Ace Pro 2, 1x Wind Guard (pre installed by default), 1x Battery, 1x Standard Mount, 1x Mic Cap and 1x USB C to USB C Cable
-
Standard Bundle with Dual Battery: 1x Insta360 Ace Pro 2, 1x Wind Guard (pre installed by default), 2x Batteries, 1x Standard Mount, 1x Mic Cap and 1x USB A to USB C Cable
-
Videography Bundle Limited Edition Dual Battery: 1x Insta360 Ace Pro 2, 1x Wind Guard (pre installed by default), 2x Batteries, 1x Standard Mount, 1x Mic Cap, 1x USB C to USB C Cable, 1x Xplorer Grip Pro Kit, 1x Flip Screen Hood, 1x Cinematic Lens and 1x 128GB microSD Card
-
Xplorer Pro Bundle Dual Battery: 1x Insta360 Ace Pro 2, 1x Wind Guard (pre installed by default), 2x Batteries, 1x Standard Mount, 1x Mic Cap, 1x USB C to USB C Cable and 1x Xplorer Grip Pro Kit
-
Xplorer Bundle Dual Battery: 1x Insta360 Ace Pro 2, 1x Wind Guard (pre installed by default), 2x Batteries, 1x Standard Mount, 1x Mic Cap, 1x USB C to USB C Cable, 1x Grip, 1x Utility Frame, 1x Cold Shoe Shutter Button, 1x Decorative Cold Shoe Cap and 1x Wrist Strap
- Motorcycle Bundle Dual Battery
- Motovlog Bundle Dual Battery
- Flash Print Bundle Dual Battery
- Bike Bundle Dual Battery
- Winter Bundle Dual Battery
- POV Bundle Dual Battery
- Get-Set Bundle Dual Battery
- Ultimate Videography Bundle Dual Battery
- Motorcycle Bundle Single Battery
- On-the-Go Bundle Single Battery
- SuperMotocross Edition Single Battery
- Bike Bundle Single Battery
- Get-Set Bundle Single Battery
- Winter Bundle Single Battery
- POV Bundle Single Battery
- Xplorer Bundle Single Battery
- Standard Bundle Arctic White Single Battery
- Winter Bundle Arctic White Single Battery
- Bike Bundle Arctic White Single Battery
- Motorcycle Bundle Arctic White Single Battery
- Xplorer Bundle Arctic White Single Battery
Our team confirms the exact configuration with your order.
Frequently Asked Questions
Is the Insta360 Ace Pro 2 waterproof?
Yes. The camera is waterproof to 39ft (12m) without a case.
How long does the Insta360 Ace Pro 2 battery last?
The 1800mAh battery runs up to 180 minutes (1080p24fps, Endurance Mode) and charges to 80% in 18 minutes with fast charging.
What is the difference between Single Battery and Dual Battery?
The Dual Battery edition includes a second battery in the box; the camera is the same.
Does the Insta360 Ace Pro 2 include a microSD card?
The Videography Bundle Limited Edition Dual Battery and the SuperMotocross Edition Single Battery include a 128GB microSD card. The camera supports microSD cards up to 1TB.
