Description

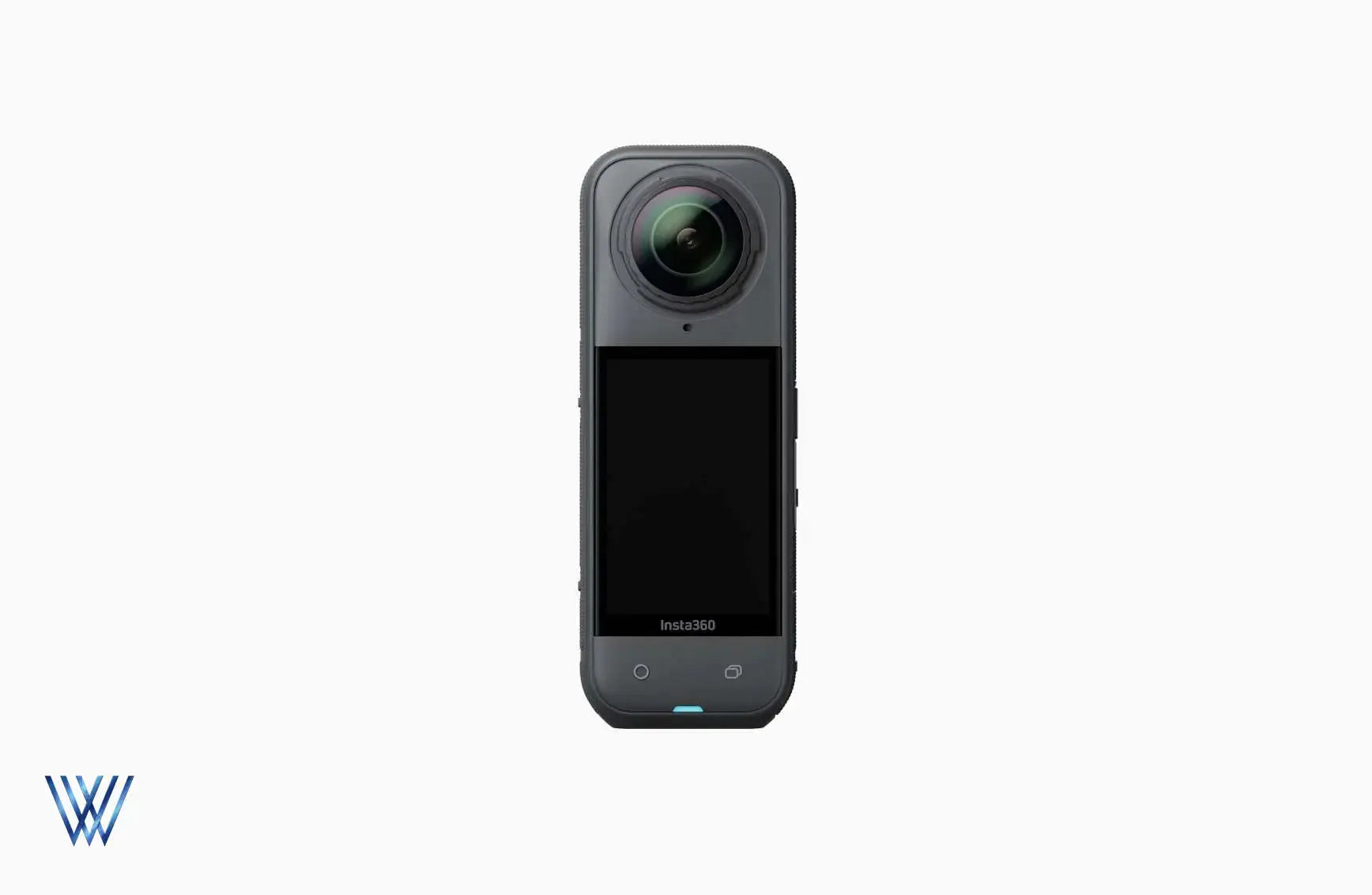

Insta360 X5
Key Specifications
- 8K30fps 360 video with dual 1/1.28" sensors
- Triple AI Chip with PureVideo for low light
- Approx. 72MP 360 photos
- Invisible Selfie Stick effect
- InstaFrame 2.0 ready to share 4K video
- Tougher, replaceable lenses
- 2400mAh battery, up to 208 mins (5.7K24 Endurance Mode)
- Fast charging: 80% in 20 mins
- Waterproof to 49ft (15m)
- Weight 200g
- Warranty: 1 Year Official Warranty
Product Description
Insta360 X5 is Insta360's flagship 360 action camera. Its larger 1/1.28" sensors and Triple AI Chip record 8K30fps 360 video, so you capture every angle at once and choose the shot later in the Insta360 app or Studio. It comes in Midnight Black and a Satin White Limited Edition.
8K 360 Video with Dual 1/1.28" Sensors
The larger 1/1.28" sensors capture more light for brighter, richer visuals. X5 supersamples from 11K to 8K for detailed, clear and immersive 360 clips, with up to 13.5 stops of dynamic range.
Triple AI Chip and PureVideo for Low Light
Insta360's first triple AI chip works with PureVideo mode. Advanced AI noise reduction and dynamic range optimisation give clear, vivid footage at night, in low light and under streetlights.
Invisible Selfie Stick Effect
Capture third person angles and drone like views that other action cameras cannot get, with no stick in sight.
InstaFrame 2.0
Get perfectly framed, ready to share 4K video. Auto tracking keeps your subject centred, the Virtual Gimbal adds smooth natural movement and the Virtual Joystick lets you steer the view in real time, with no editing needed.
Tougher, Replaceable Lenses
Insta360's most durable lenses yet now have a replaceable design. If a lens gets damaged, swap it and get back to the action.
Clearer Audio with the New Wind Guard
A multi layer steel mesh Wind Guard and refreshed audio algorithms cut wind noise. Audio modes include Auto Wind Noise Reduction, Voice Enhancement, Stereo and 360° Audio.
208 Minutes Battery Life and Fast Charging
The 2400mAh battery records up to 208 minutes in 5.7K24fps Endurance Mode and 93 minutes at 8K30fps. It charges to 80% in 20 minutes and 100% in 35 minutes with a 30W PD charger.
AI Director and Single Lens Modes
One tap in the app and AI finds highlights, auto edits and creates a share ready video. Switch to single lens mode for 4K60 video, FreeFrame Video or Me Mode, and use Bullet Time, TimeShift, Timelapse, Loop Recording and Road Mode for creative shots.
Technical Specifications
| Sensor Size |
1/1.28" |
| Aperture |
F2.0 |
| Focal Length |
6mm |
| 360 Video Resolution |
8K: 7680x3840@30/25/24fps; 5.7K+: 5760x2880@30/25/24fps; 5.7K: 5760x2880@60/50/48/30/25/24fps; 4K: 3840x1920@120/100/60/50/48/30/25/24fps |
| PureVideo Mode |
8K: 7680x3840@30/25/24fps; 5.7K: 5760x2880@30/25/24fps; 4K: 3840x2160@30/25/24fps |
| InstaFrame 2.0 |
Flat video 4K: 3840x2160@30/25/24fps, 1080p@30/25/24fps; 360 video 5.7K+: 5760x2880@30/25/24fps |
| Single Lens Video |
4K: 3840x2160@60/50/30/25/24fps; 2.7K: 2720x1536@60/50/30/25/24fps; 1080p: 1920x1080@120/100/60/50/30/25/24fps |
| FreeFrame Video |
4K: 3840x3840@30/25/24fps; 2.7K: 2720x2720@60/50/30/25/24fps; 1080p: 1920x1920@60/50/30/25/24fps |
| Me Mode |
4K: 3840x2160@30/25/24fps; 2.7K: 2720x1536@120/100/60/50/30/25/24fps; 1080p: 1920x1080@120/100/60/50/30/25/24fps |
| Photo Resolution |
Approx. 72MP (11904x5952), approx. 18MP (5888x2944) |
| Video Format |
360: INSV; Single Lens: MP4 |
| Photo Format |
INSP, DNG |
| 360 Video Modes |
Video (built in Active HDR), PureVideo, InstaFrame 2.0, Timelapse, TimeShift, Bullet Time, Loop Recording, Road Mode |
| Single Lens Video Modes |
Video, FreeFrame Video, Me Mode, Loop Recording, PureVideo |
| Photo Modes |
Photo (optional HDR), Interval, Starlapse, Burst |
| Color Profiles |
Vivid, Standard, Flat, I Log |
| Video Coding |
H.264, H.265 |
| Max. Video Bitrate |
180 Mbps |
| Exposure Value |
±4EV |
| ISO Range |
100 to 6400 |
| Shutter Speed |
Photo: 1/8000 to 120s; Video: 1/8000, to the limit of frames per second |
| White Balance |
2000K to 10000K |
| Audio Modes |
Auto Wind Noise Reduction (two strengths), Voice Enhancement, Stereo, 360° Audio |
| Audio Format |
48 kHz, 16bit, AAC |
| Weight |
200g (7.1oz) |
| Dimensions (W x H x D) |
46 x 124.5 x 38.2mm |
| Colours |
Midnight Black, Satin White (Limited Edition) |
| microSD Card |
UHS I V30 speed class or higher |
| Battery Capacity |
2400mAh |
| Charging Time |
80% in 20 mins, 100% in 35 mins (9V 3A) |
| Run Time |
8K30fps: 93 mins; 8K24fps Endurance Mode: 115 mins; 5.7K30fps: 135 mins; 5.7K24fps Endurance Mode: 208 mins |
| Operating Temperature |
-20°C to 40°C |
| Waterproof |
49ft (15m) |
| Bluetooth |
BLE 5.2 |
| WiFi |
802.11a/n/ac |
| USB |
USB C 3.0 |
| Gyroscope |
6 axis gyroscope |
| Mounting Point |
1/4" Quick Release |
| Warranty |
1 Year Official Warranty |

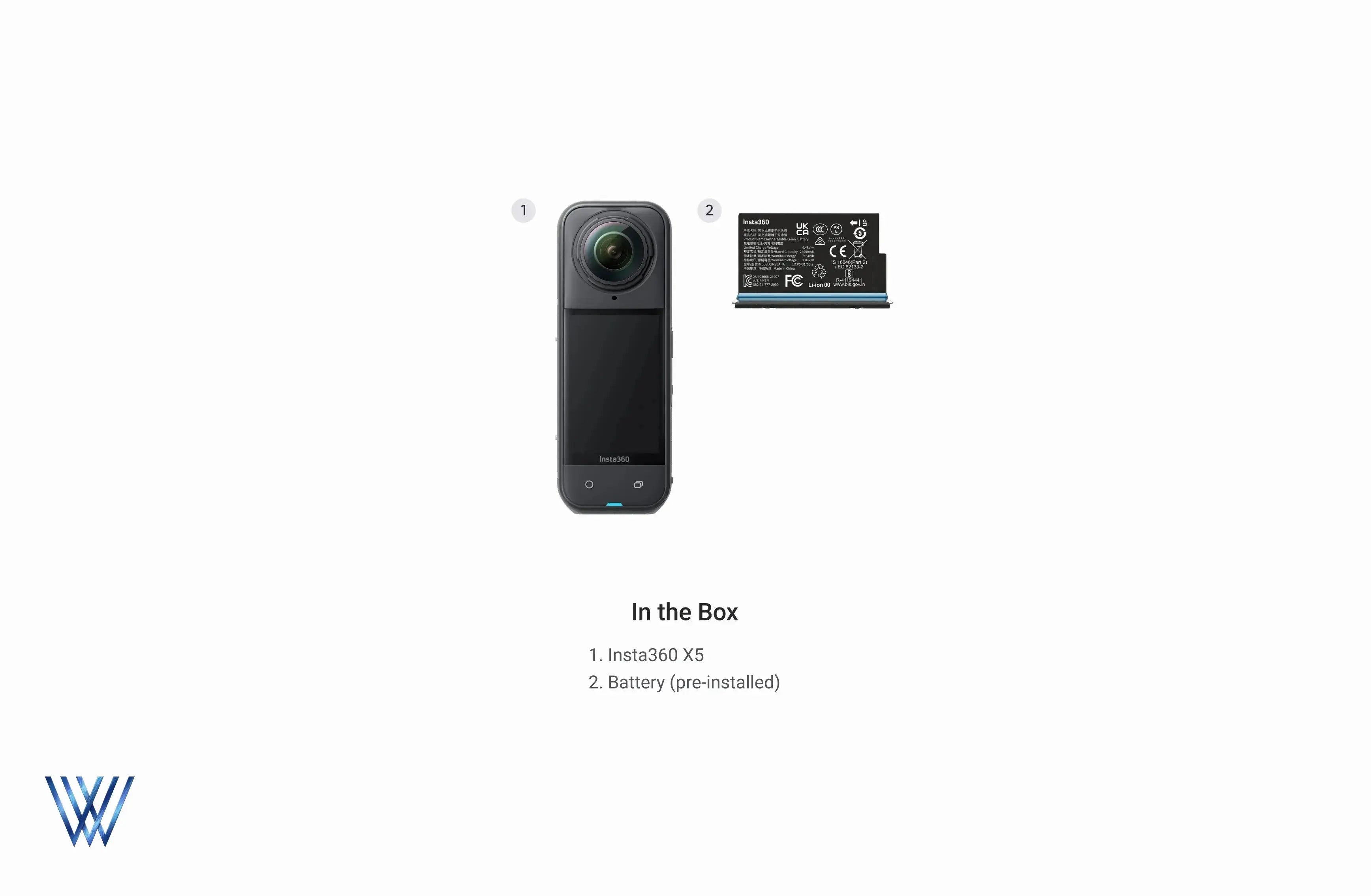

In the Box
- 1x Insta360 X5
- 1x Battery

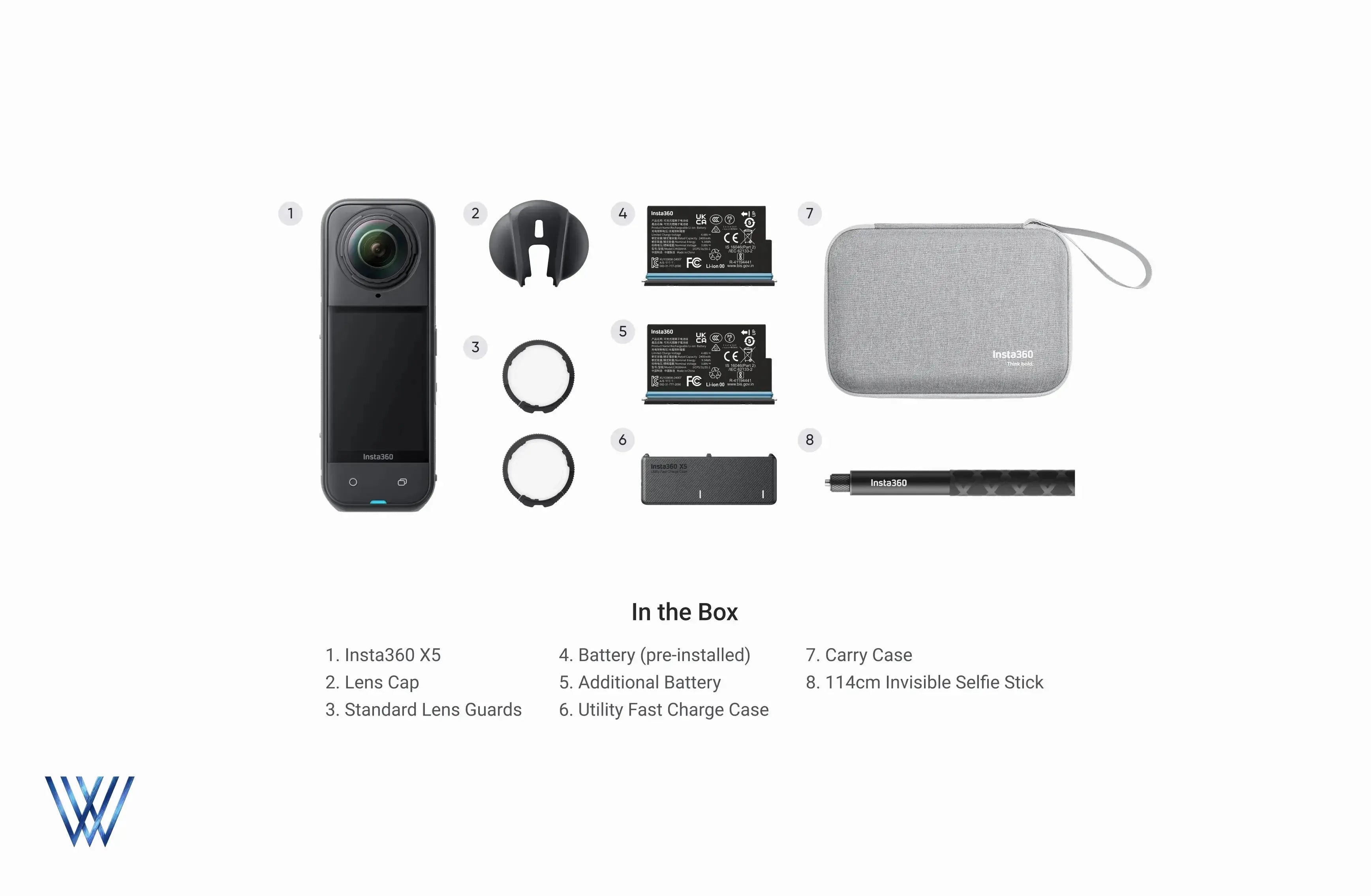

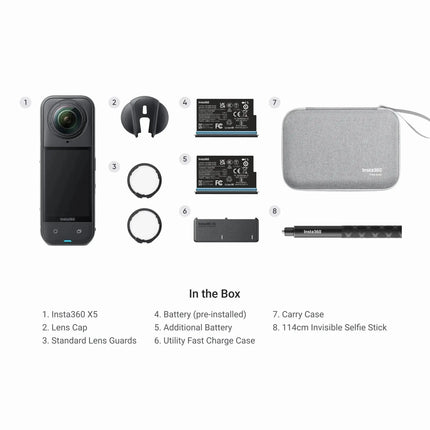

Available Configurations
- Standard Midnight Black: 1x Insta360 X5 and 1x Battery
- Standard Satin White Limited Edition: 1x Insta360 X5 and 1x Battery
- Essentials Midnight Black
- Starter Midnight Black
- Travel Midnight Black
- Motorcycle Multiview Midnight Black
- Motorcycle Ultimate Multiview Midnight Black
- Pro Dive Midnight Black
- Invisible Dive Midnight Black
- Road Cycling Independent Midnight Black
- Photography Grip Midnight Black
- Snowboard Midnight Black
- Ski Midnight Black
- MM93 2025 Championship Edition
- Get-Set Midnight Black
- Premium Lens Guards Midnight Black
- Car Midnight Black
- Essentials Satin White Limited Edition
- Travel Satin White Limited Edition
- Photography Grip Satin White Limited Edition
- Starter Satin White Limited Edition
- Car Satin White Limited Edition
Our team confirms the exact configuration with your order.
Frequently Asked Questions
Is the Insta360 X5 waterproof?
Yes. The camera is waterproof to 49ft (15m).
How long does the Insta360 X5 battery last?
The 2400mAh battery gives up to 93 minutes at 8K30fps and up to 208 minutes in 5.7K24fps Endurance Mode. It charges to 80% in 20 minutes.
Which colours does the Insta360 X5 come in?
Midnight Black and Satin White (Limited Edition). Midnight Black comes in the Standard, Essentials, Starter, Travel, Motorcycle Multiview, Motorcycle Ultimate Multiview, Pro Dive, Invisible Dive, Road Cycling Independent, Photography Grip, Snowboard, Ski, Get-Set, Premium Lens Guards and Car bundles, plus the MM93 2025 Championship Edition. Satin White Limited Edition comes in the Standard, Essentials, Travel, Photography Grip, Starter and Car bundles.
Does the Insta360 X5 include a microSD card?
No. It comes without a microSD card. Use a UHS I V30 card or faster.
Can the Insta360 X5 shoot normal flat video?
Yes. Single lens mode records 4K60 video, and InstaFrame 2.0 gives ready to share 4K flat video, while still saving a 360 file.
