Tilta Arca Height Adjustable 15mm LWS Baseplate

Description

Tilta Arca Height Adjustable 15mm LWS Baseplate

Key Specifications

  • 15mm LWS baseplate with Arca receiver (TA HABP)
  • Height adjustable: rod centre to Arca receiver 18 to 38 mm
  • Keeps the LWS 85 mm standard for rod accessories
  • Works with DJI standard Arca plates and many Tilta cages
  • Slides onto Tilta Standard dovetails; 1/4"-20 threads underneath
  • Safety pin for extra security
  • Recommended for camera systems under about 4.5 kg (10 lb)

Product Description

Tilta Arca Height Adjustable 15mm LWS Baseplate adds 15mm LWS rod support under your camera so you can mount matte boxes, follow focus systems and other rod accessories. Its height adjustment keeps the rods at the right distance from the lens centre for different cameras.

Adjustable height

The distance from the centre of the rods to the Arca receiver adjusts from 18 mm to 38 mm, so you can keep the LWS 85 mm standard between rods and sensor centre and stay compatible with standard accessories.

Arca receiver on top

The top receiver accepts DJI standard Arca plates and the Arca bases of many Tilta camera cages, so your camera clicks in quickly.

Dovetail and tripod ready

The bottom slides and locks onto Tilta Standard dovetails and also has 1/4"-20 threads for tripods and other supports. A safety pin adds extra security.

Rods sold separately

Add a pair of 15mm rods, such as the Tilta 15mm Carbon Fiber Rod Set, to mount your accessories.

Technical Specifications

Brand Tilta
Model Arca Height Adjustable 15mm LWS Baseplate (TA HABP B Black / TA HABP TG Titanium Gray)
Rod Standard 15mm LWS (rods not included)
Height Adjustment 18 to 38 mm from rod centre to Arca receiver
Top Mount Arca receiver (DJI standard)
Bottom Mount Tilta Standard dovetail, 1/4"-20 threads
Recommended Load Under about 4.5 kg (10 lb)
Package Size (approx.) 19.1 × 14 × 8.9 cm
Package Weight (approx.) 0.45 kg
Materials Aluminium alloy, SUS304 stainless steel, silicone

In the Box

  • Tilta Arca Height Adjustable 15mm LWS Baseplate × 1
  • Allen key × 1

Available Configurations

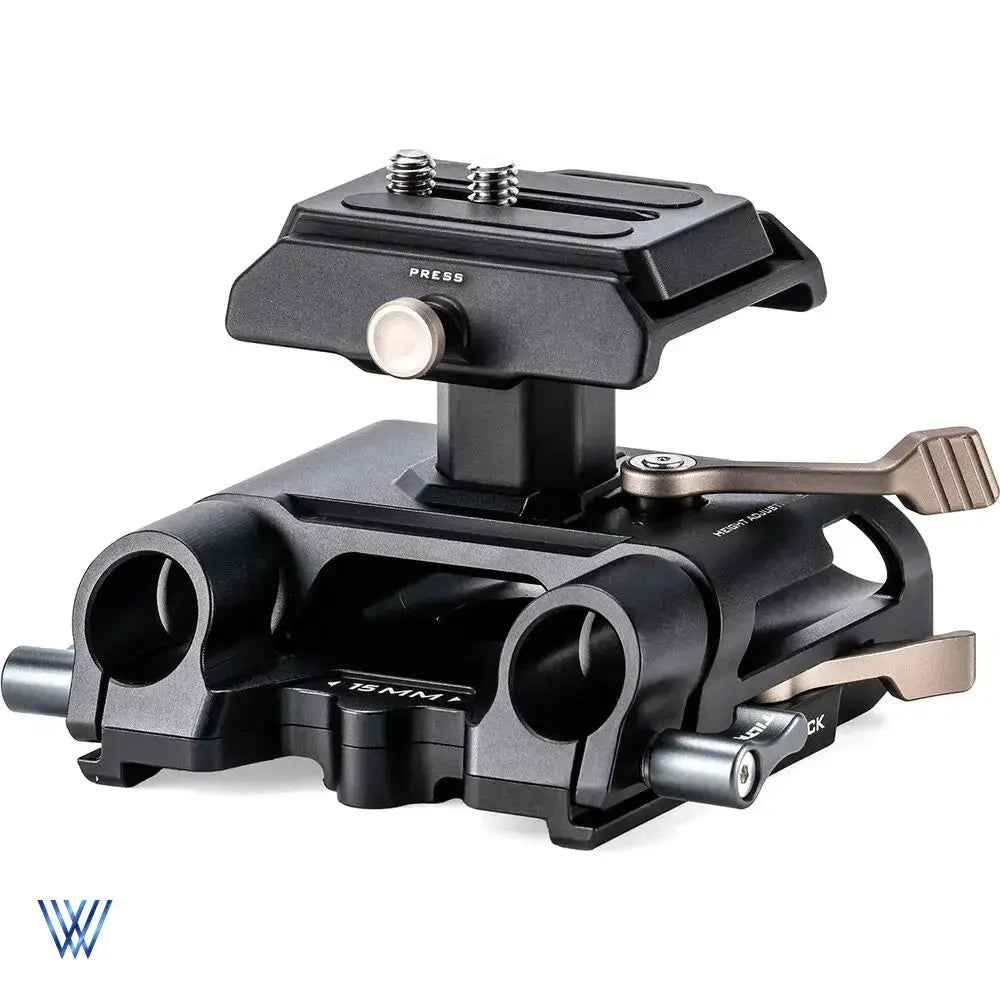

  • Black (TA HABP B)

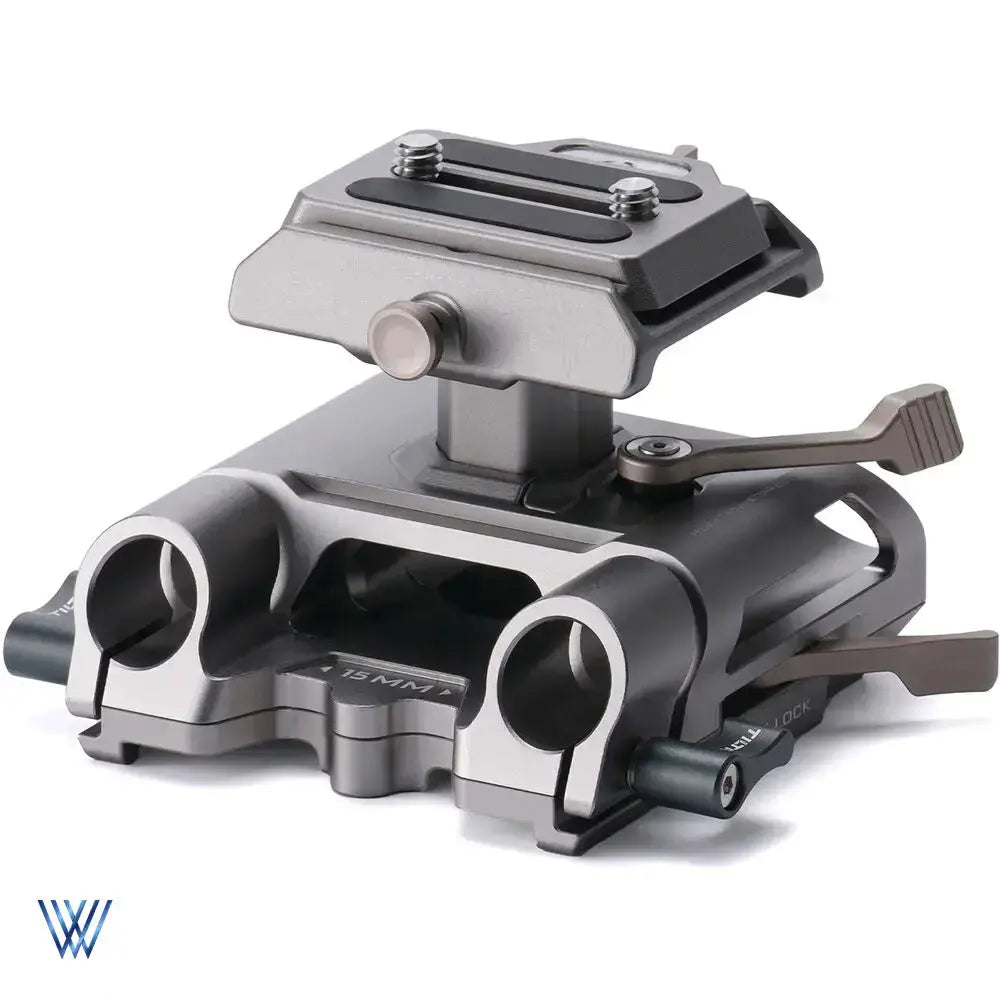

  • Titanium Gray (TA HABP TG)

Frequently asked questions

Are rods included?

No. Use any pair of 15mm LWS rods, for example the Tilta 15mm Carbon Fiber Rod Set.

Will it fit my dovetail?

The bottom fits Tilta Standard dovetails such as the Tilta 10 inch Standard Lightweight Dovetail Plate.

Is the Tilta Arca Height Adjustable 15mm LWS Baseplate at Lens Ground genuine?

Yes. Every product sold by Lens Ground is 100% genuine.
