Description
SmallRig Camera Cage for Sony FX30
Key Specifications
- Full cage for the Sony FX30, also fits the Sony FX3
- SmallRig item 4183 (current version 4183B)
- Removable NATO rail; supports the original Sony XLR top handle
- Dedicated HDMI cable clamp included
- Arca Swiss quick release base for DJI RS gimbals and tripods
- 1/4"-20 threads, 3/8"-16 ARRI holes, cold shoes, QD socket
- Hinge arm at the battery door for a better grip
- Weight 190 g
Product Description

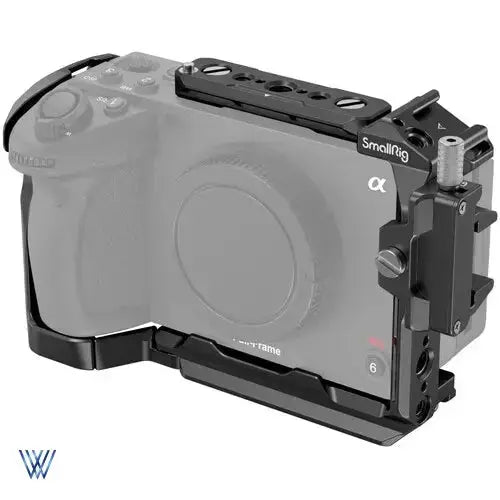

SmallRig Camera Cage for Sony FX30 is SmallRig's full cage (item 4183) for the Sony FX30 cinema camera. It protects the camera, keeps all controls and ports open and adds the mounting points you need to build a handheld, gimbal or tripod rig, while still letting you use Sony's own XLR top handle.

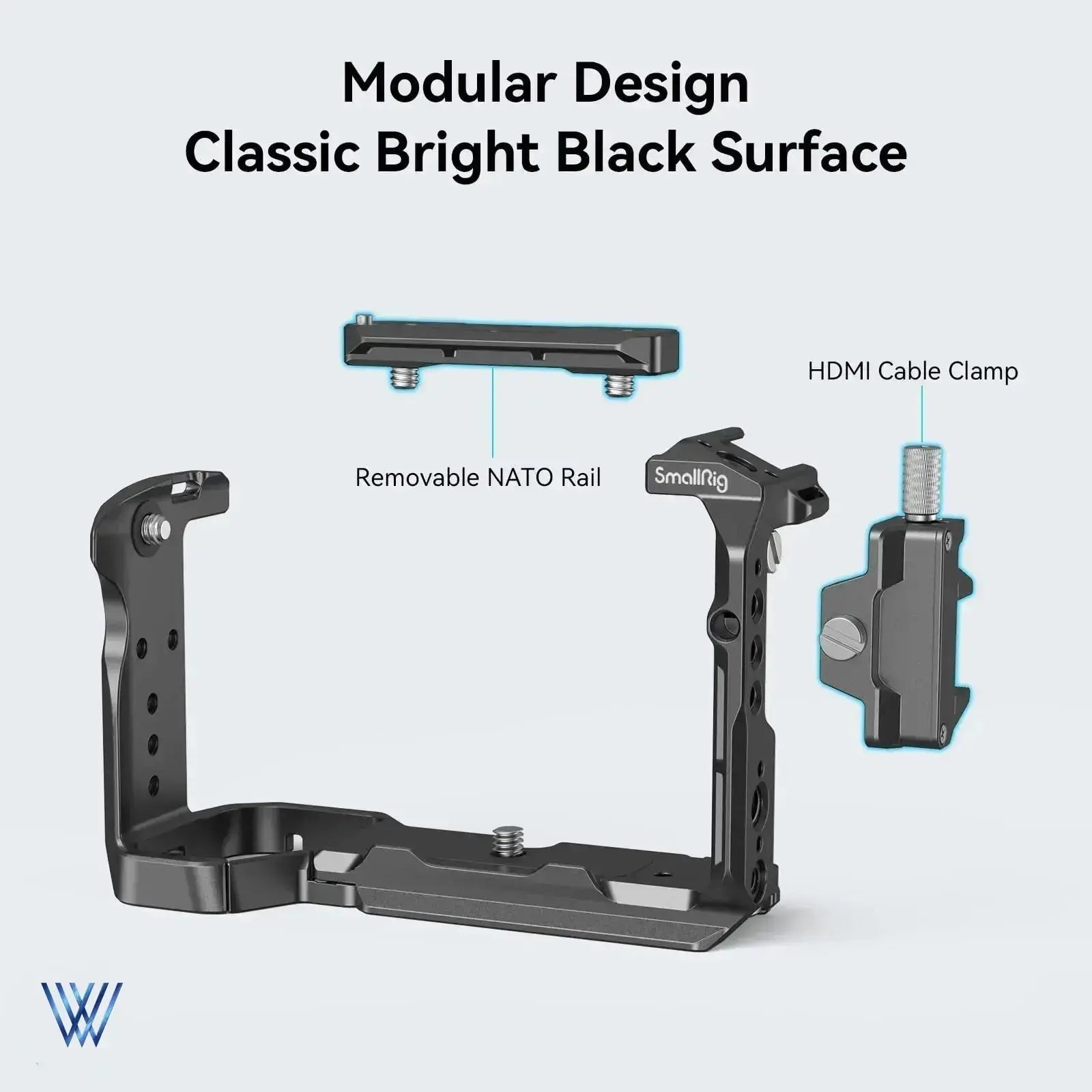

Modular NATO rail
The top NATO rail lines up with the FX30's own holes and takes monitor mounts and top handles. Remove it and the original Sony XLR audio handle fits straight onto the camera.
Stable HDMI and secure fit
A dedicated HDMI cable clamp protects the port and keeps the signal stable for external monitors and recorders. A triple locking design stops the camera from twisting inside the cage.
Mount everything you need
1/4"-20 threaded holes, 3/8"-16 ARRI locating holes, cold shoe mounts, NATO rails, strap holes and a QD socket take handles, microphones, LED lights, monitors and straps. Threaded holes on the left side also take a follow focus system.
Handheld, gimbal or tripod
The Arca Swiss quick release plate at the bottom moves between handheld shooting, Arca Swiss tripods and DJI RS 2, RSC 2, RS 3, RS 3 Pro, RS 4, RS 4 Pro and RS 5 gimbals. A hinge arm at the battery door improves your grip and opens for quick battery changes.
Technical Specifications
| Brand |
SmallRig |
| Model |
Cage for Sony FX30 / FX3, item 4183 (4183B) |
| Compatible Cameras |
Sony FX3, Sony FX30 |
| Accessory Mounts |
1/4"-20 threaded holes, 3/8"-16 ARRI locating holes, cold shoe mounts, NATO rail, QD socket, shoulder and wrist strap holes |
| Quick Release |
Arca Swiss plate; works with DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro / RS 5 |
| Top Hole Spacing |
1/4"-20 holes on top are 27 mm apart (not for accessories that need 18 mm spacing) |
| Dimensions |
159.0 × 101.2 × 66.2 mm |
| Weight |
190 ± 5 g |
| Materials |
Aluminium alloy, stainless steel, silicone, PC + fiber |
In the Box
- SmallRig Cage × 1
- NATO rail × 1
- HDMI cable clamp × 1
- 1/4"-20 screws × 2
Available Configurations
- SmallRig Cage 4183 for the Sony FX30 (single configuration)
Frequently asked questions
Does this cage fit the Sony FX3 too?
Yes. The SmallRig 4183 cage fits both the Sony FX3 and FX30. See the same cage listed for the Sony FX3.
Can I use the Sony XLR handle with this cage?
Yes. Remove the top NATO rail first, then fit the original Sony XLR audio handle.
Can I put it on a DJI RS gimbal?
Yes. The Arca Swiss plate at the bottom fits DJI RS 2, RSC 2, RS 3, RS 3 Pro, RS 4, RS 4 Pro and RS 5 gimbals directly.
