Description

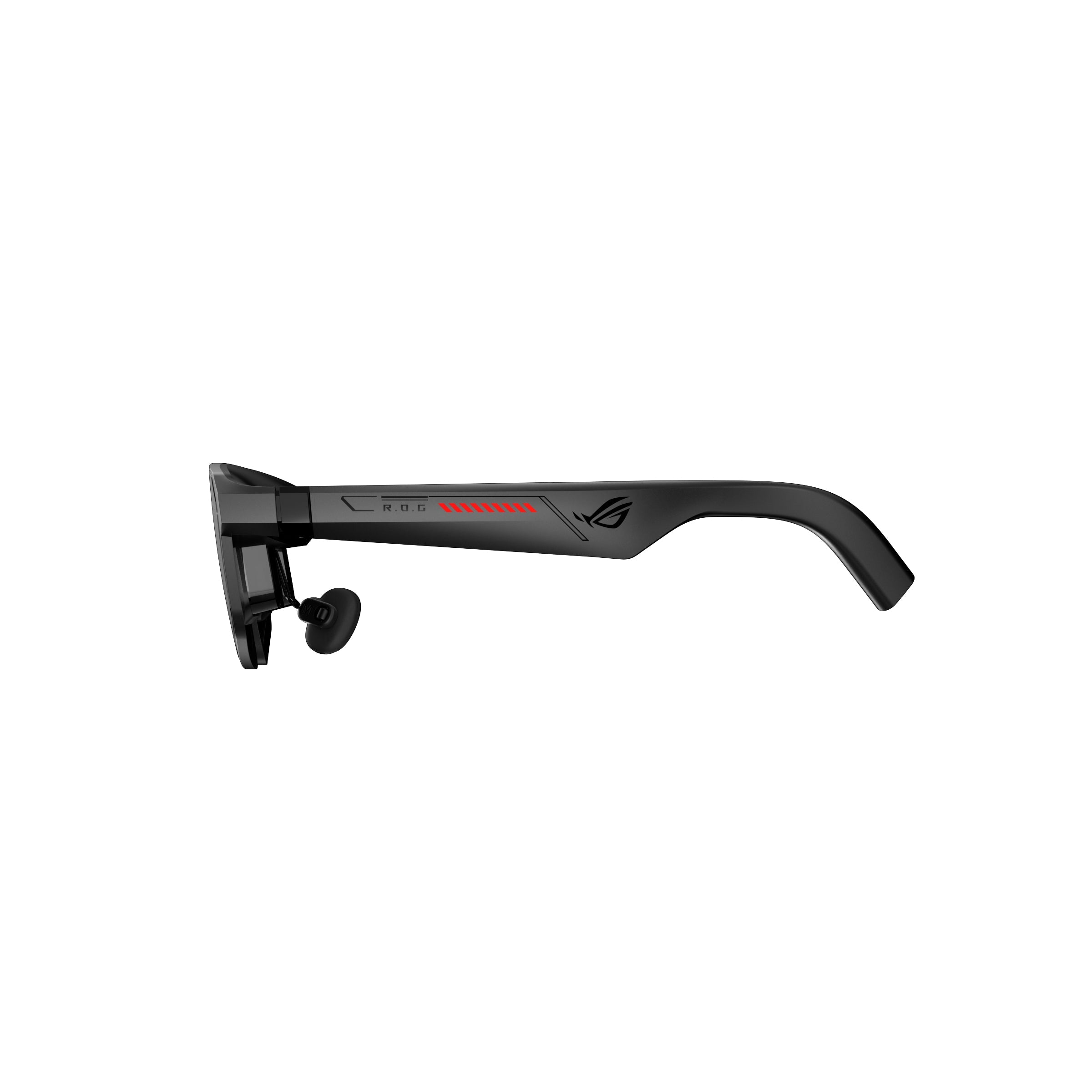

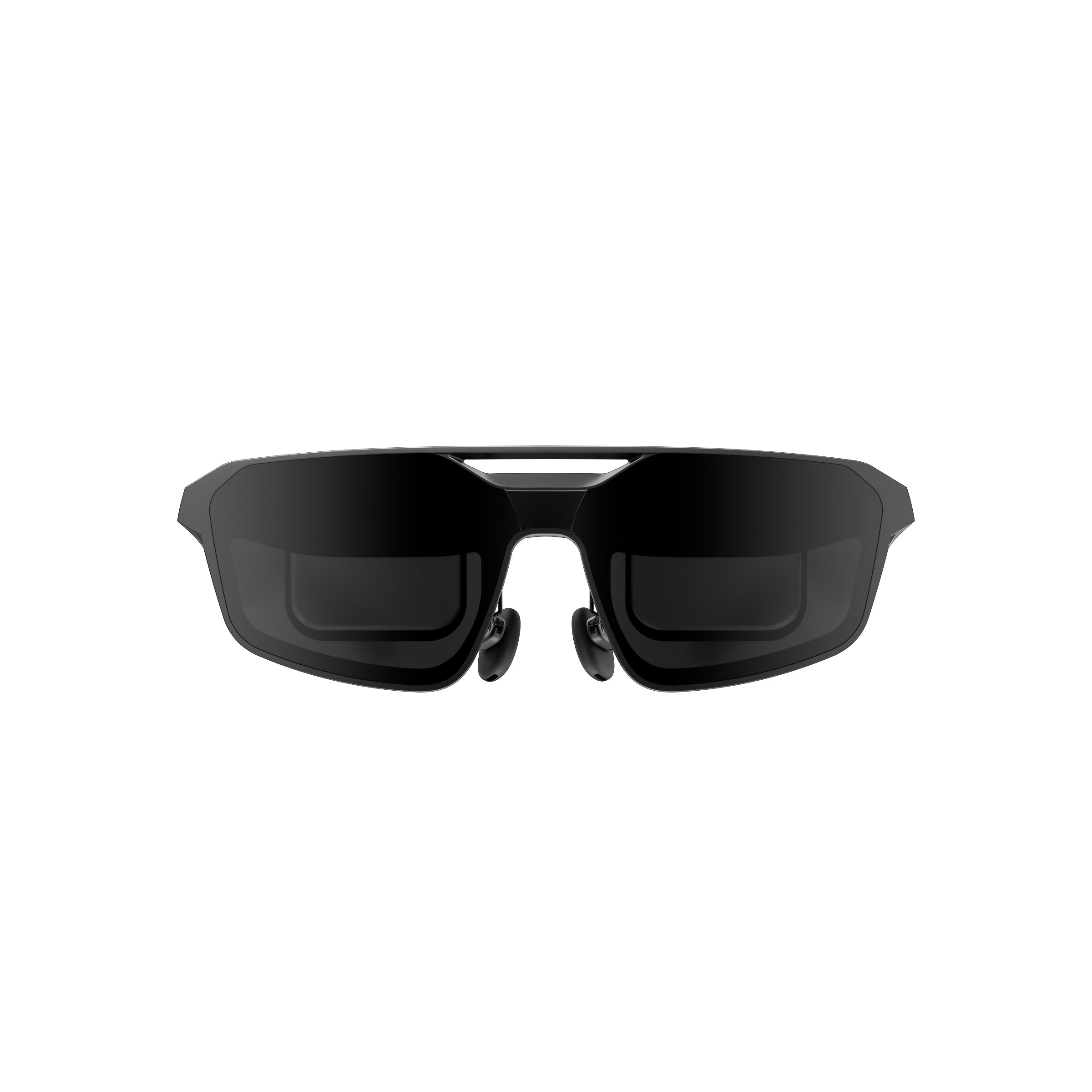

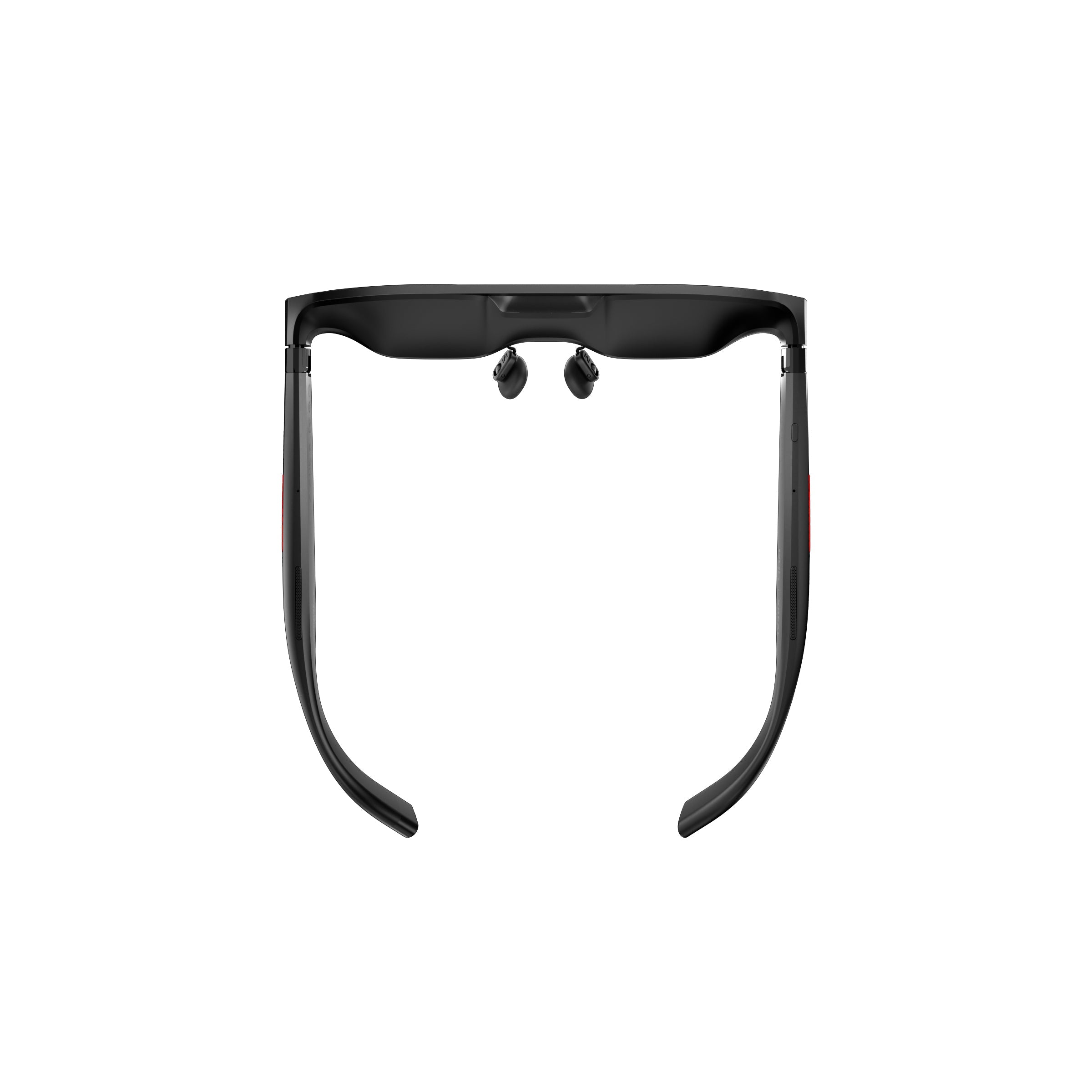

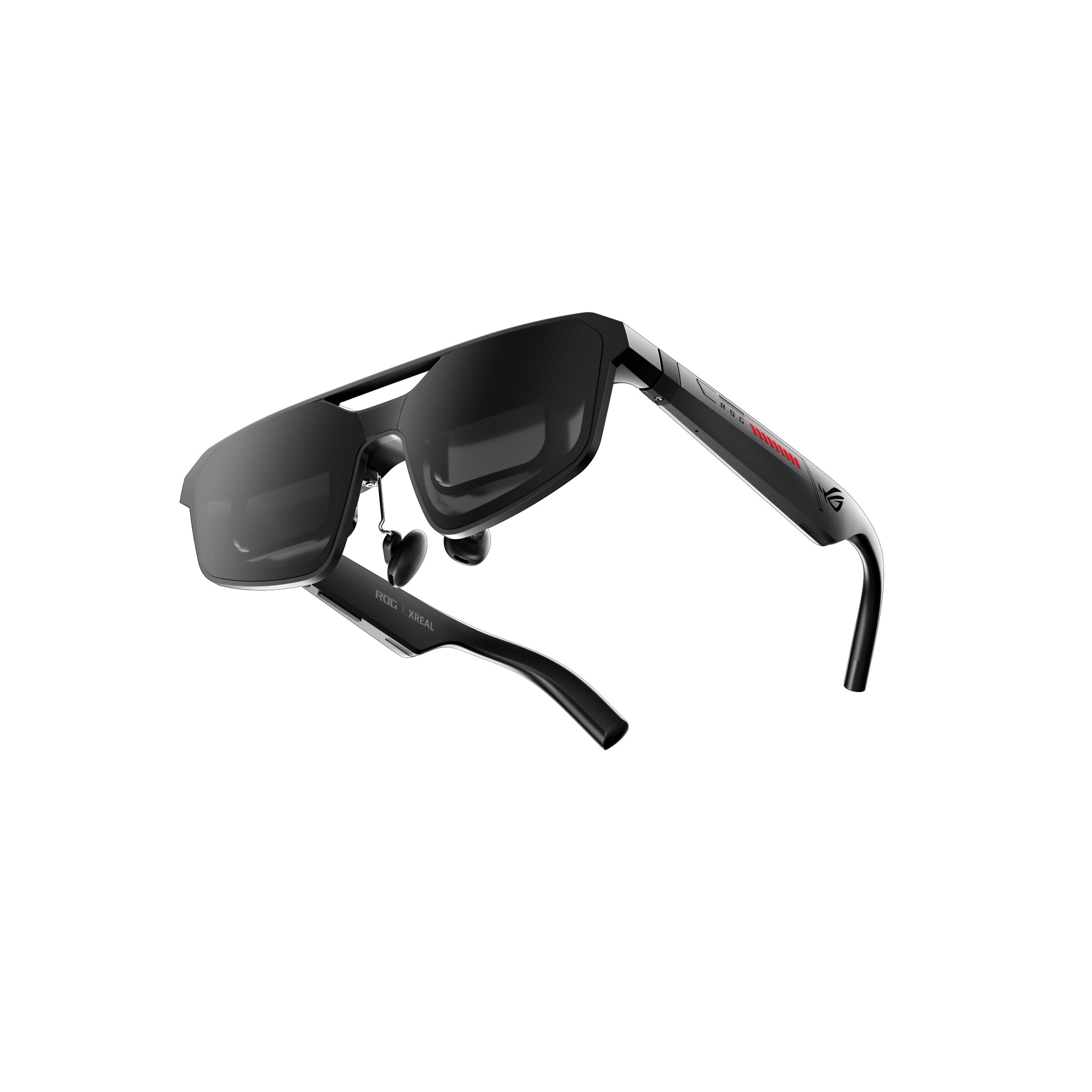

ROG XREAL R1
Key Specifications
- Gaming AR glasses made with ROG
- Micro-OLED display with up to 240Hz refresh rate
- 0.01ms response time
- 57° field of view, up to 171-inch screen at 4 metres
- 700 nits peak brightness
- XREAL X1 chip with native 3DoF Anchor mode
- Electrochromic dimming with auto transparency
- Sound by Bose and real-time 2D-to-3D
- ROG Control Dock with HDMI 2.0 and DisplayPort 1.4 included
- 91 g lightweight design
- Warranty: 1 Year Official Warranty
Product Description
ROG XREAL R1 are gaming AR glasses built by ROG and XREAL for PC, console and ROG Ally players. They give you a huge, fast virtual screen that you can take anywhere, with a 240Hz Micro-OLED display and the ROG Control Dock in the box.
Supersize your victory
Play on a virtual screen up to 171 inches at a 4-metre viewing distance, with a 57° field of view and Micro-OLED deep blacks and vivid contrast.
Built for high-speed gaming
A 240Hz refresh rate and 0.01ms response time cut motion blur and ghosting for racing games and fast action titles.
Seamless ROG Ally integration
Connect a ROG Ally with one USB-C cable. The Ally's own screen stays active so you can change brightness, screen size, aspect ratio, tint, frame-rate boost and 3D mode without stopping your game.
Native 3DoF Anchor mode
The XREAL X1 chip keeps your virtual screen pinned in space for a natural, stable view as you move your head.
Clear view in any light
Electrochromic lenses offer three tint levels plus auto transparency, so your screen stays easy to see in a bright room or at night.

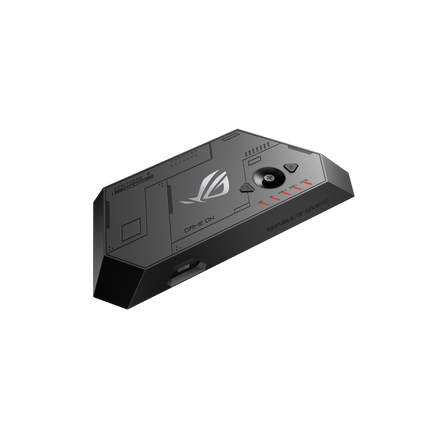

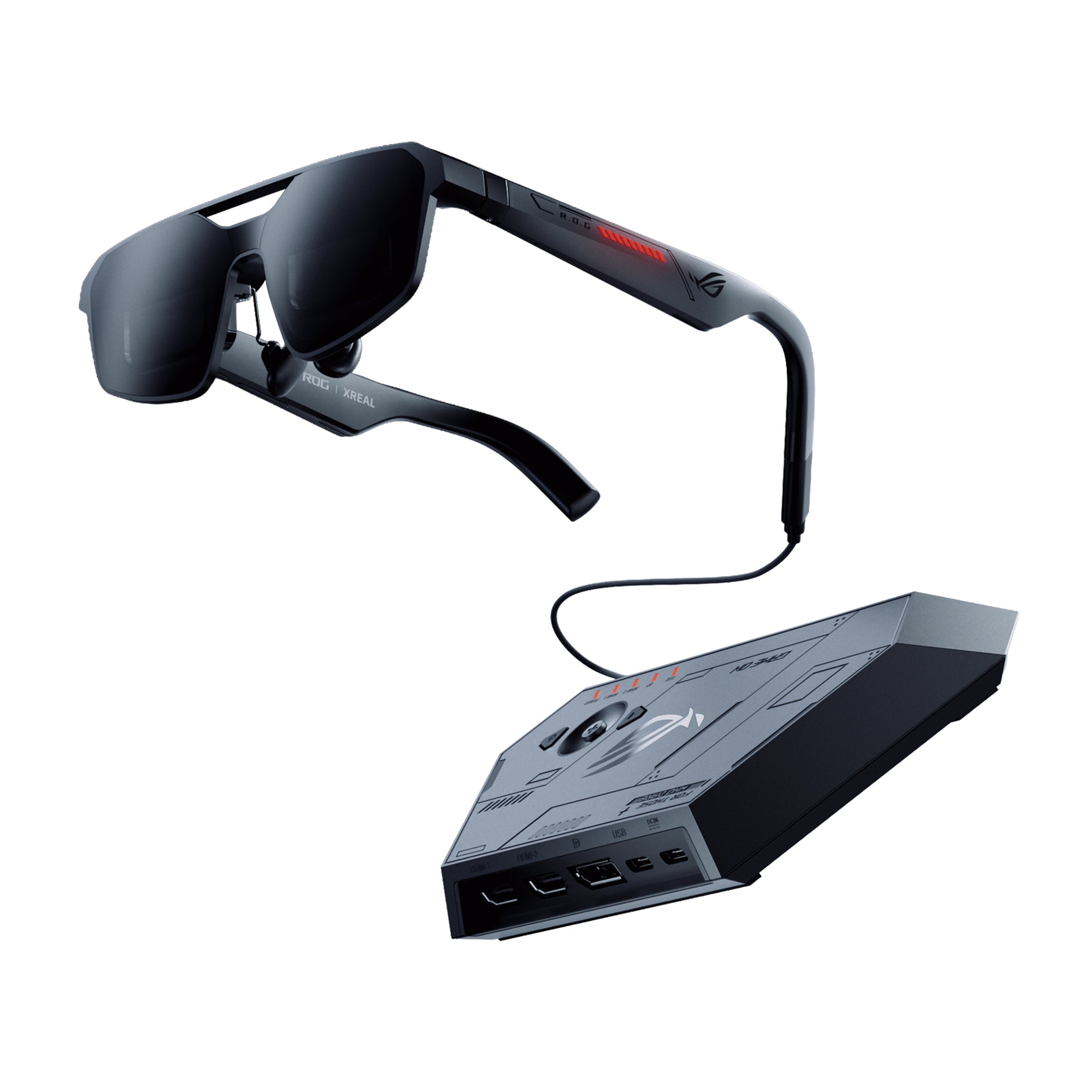

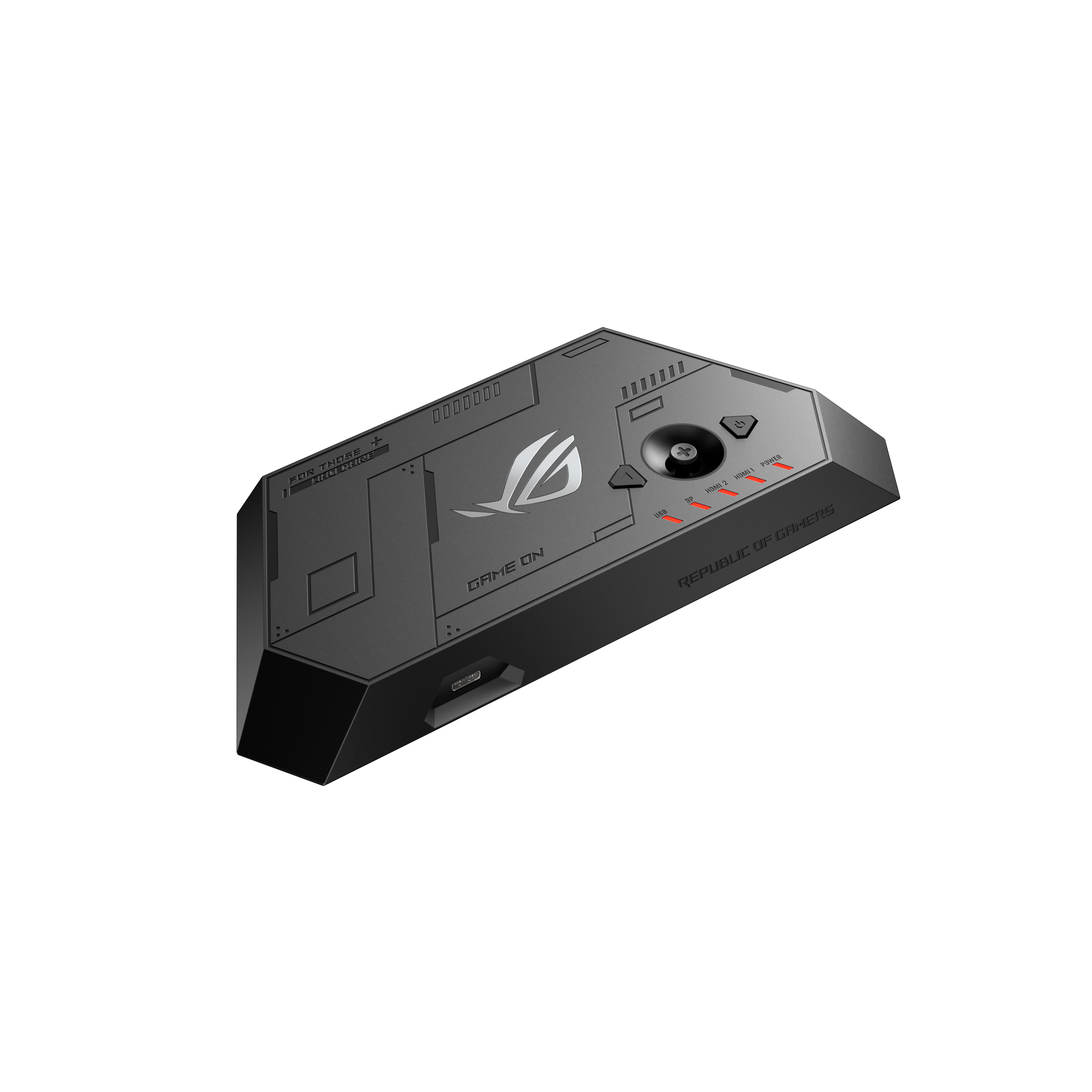

ROG Control Dock
The included dock connects PCs and consoles with HDMI 2.0 and DisplayPort 1.4 and HDR support, turning R1 into a complete big-screen gaming station. Sound by Bose and real-time 2D-to-3D conversion add even more immersion.
Technical Specifications
| Display |
Micro-OLED |
| Refresh Rate |
Up to 240Hz |
| Response Time |
0.01ms |
| Field of View |
57° |
| Peak Brightness |
700 nits |
| Virtual Screen |
Up to 171 inches at 4 m |
| Chip |
XREAL X1 spatial computing chip |
| Spatial Display |
Native 3DoF (Anchor and Follow) |
| Lens Dimming |
Electrochromic, 3 tint levels, auto transparency |
| 3D |
Real-time 2D-to-3D conversion |
| Audio |
Sound by Bose |
| IPD Sizes |
N (57-66mm), B (66-75mm) |
| Dock Ports |
HDMI 2.0, DisplayPort 1.4, HDR support |
| Connection |
USB-C to ROG Ally and other DP devices; dock for PC and consoles |
| Weight |
91 g |
| Warranty |
1 Year Official Warranty |
In the Box
- XREAL R1 glasses unit × 1
- ROG Control Dock × 1
- Lens frame (non-prescription lenses included) × 1
- USB-C to USB-C cable × 1
- Nose pads (S/M/L)
- Cleaning cloth × 1
- Protective case × 1
- User manual × 1
Available Configurations
- N (IPD 57-66mm)
- B (IPD 66-75mm)
Our team confirms the exact configuration with your order.
Frequently Asked Questions
What devices work with the ROG XREAL R1?
ROG Ally and other devices with USB-C DisplayPort output connect directly. PCs and consoles connect through the included ROG Control Dock with HDMI 2.0 or DisplayPort 1.4.
What do the N and B sizes mean?
Size N fits IPD 57-66mm and size B fits IPD 66-75mm.
What refresh rate does it support?
Up to 240Hz, with a 0.01ms response time.
Are prescription lenses available?
Yes. ROG XREAL R1 Prescription Lenses can be ordered separately.
Does the ROG XREAL R1 come with a warranty?
Yes, it comes with 1 Year Official Warranty.
Is the ROG XREAL R1 at Lens Ground genuine?
Yes. Every product sold by Lens Ground is 100% genuine.
