Description
DJI Zenmuse L3
Key Specifications
- Long range, high accuracy aerial LiDAR drone payload for DJI Matrice 400
- 1535 nm LiDAR with up to 950 m detection range at 10% reflectivity (100 kHz)
- Dual 100MP 4/3 CMOS RGB mapping cameras with mechanical shutters, 107° combined horizontal FOV
- Point cloud accuracy: 3 cm vertical / 4 cm horizontal (RMSE) at 120 m altitude
- Up to 16 returns and pulse rates from 100 kHz to 2000 kHz
- Up to 100 km² of coverage per day
- High precision POS system and 3 axis stabilized gimbal
- IP54 rating, -20° to 50° C operating temperature
- Weight: 1.60 kg (without single gimbal connector)
Product Description

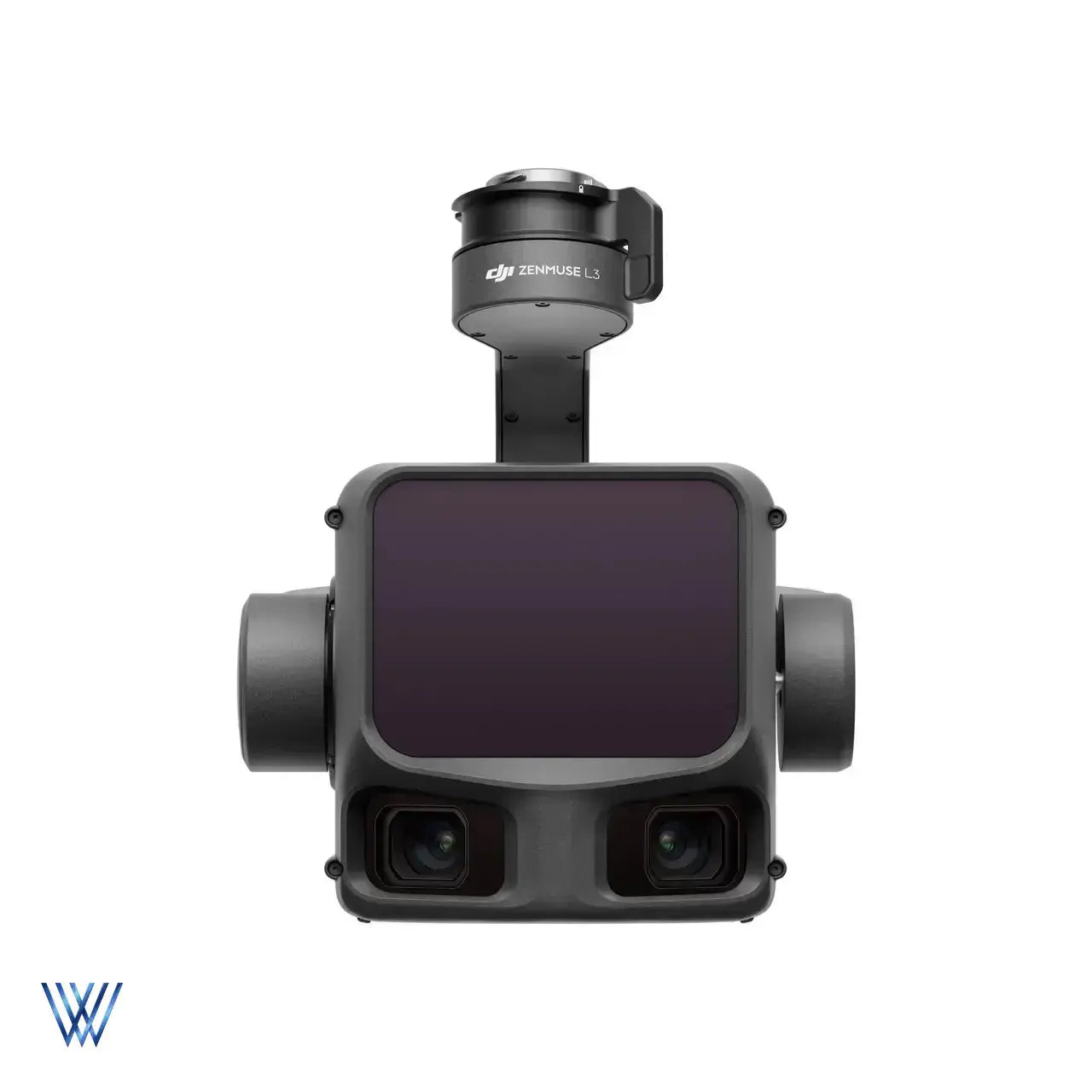

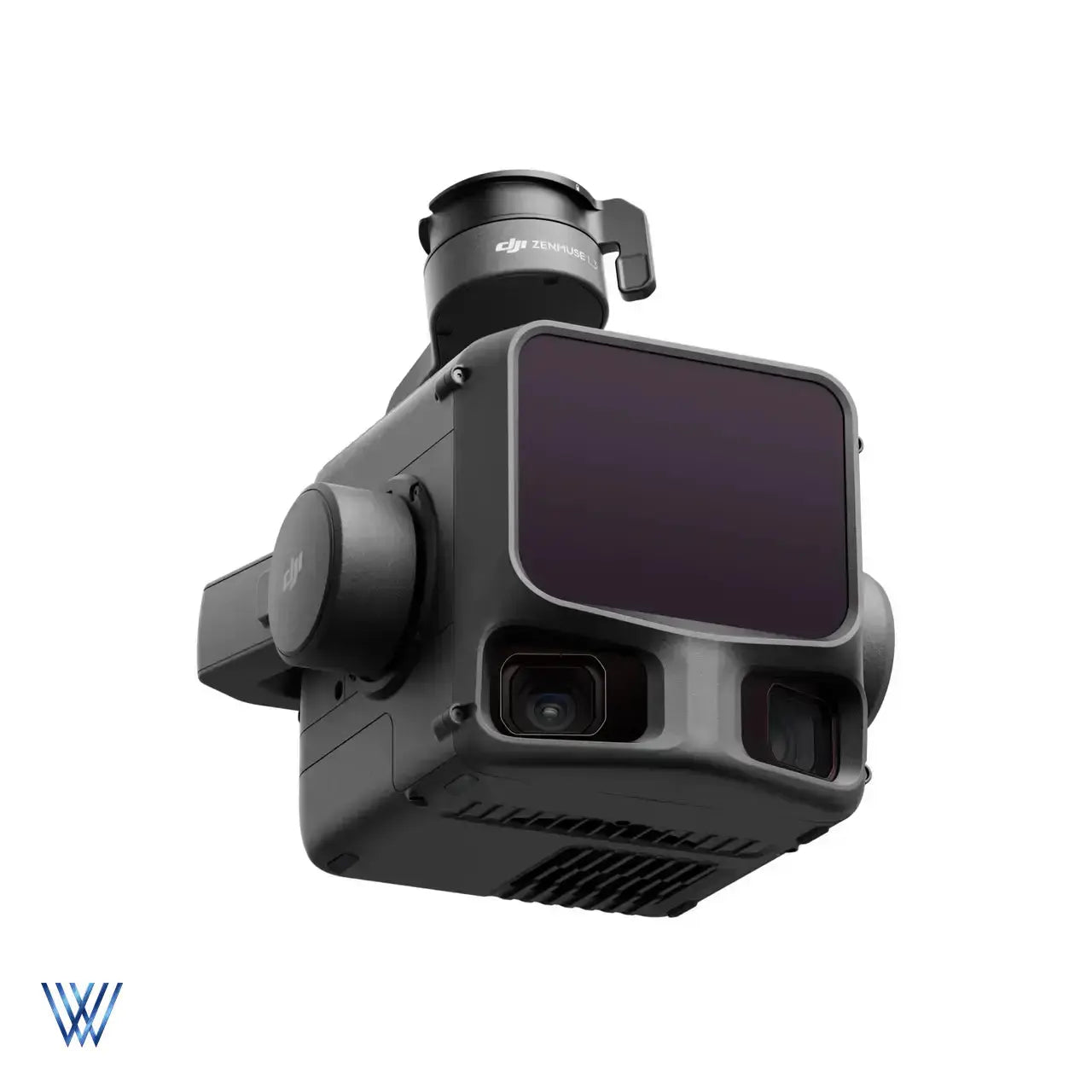

DJI Zenmuse L3 is a long range, high accuracy aerial LiDAR drone payload and DJI's first long range LiDAR system. It integrates a 1535 nm long range LiDAR, dual 100MP RGB mapping cameras, a high precision POS system and a three axis gimbal in one compact device, reaching up to 950 m even on objects with just 10% reflectivity and enabling daily coverage of up to 100 km² when mounted on the DJI Matrice 400.
1535 nm Long Range LiDAR
The LiDAR detects up to 700 m at 10% reflectivity (350 kHz), 950 m at 10% reflectivity (100 kHz) and 2000 m at 80% reflectivity, with a small 0.25 mrad beam divergence for strong penetration through vegetation. It supports Linear, Star Shaped and Non Repetitive scanning modes and up to 16 returns.
Dual 100MP RGB Mapping Cameras
Two 4/3 CMOS mapping cameras with a 45° optical axis angle between them give a combined 107° horizontal FOV. Each has a 28 mm equivalent lens, f2.0 to f11 aperture and a mechanical shutter rated for 500,000 actuations, capturing 100MP photos at a minimum interval of 1 s.
High Accuracy
At 120 m flight altitude the point cloud reaches 3 cm vertical and 4 cm horizontal accuracy (RMSE); at 300 m it reaches 5 cm vertical and 7.5 cm horizontal. Ranging accuracy is ±10 mm with repeatability under 5 mm.
Power Line and Wire Detection
The LiDAR can detect a 21.6 mm steel core aluminium stranded wire at up to 300 m and an 18.4 mm black PVC insulated wire at up to 100 m.
End to End Workflow
Data is collected with DJI Pilot 2, processed in DJI Terra, edited in DJI Modify and managed in the cloud with DJI FlightHub 2. Point clouds export to PNTS, LAS, LAZ, PLY, PCD and S3MB formats.
Technical Specifications
| Product Type |
Aerial LiDAR drone payload |
| Supported Aircraft |
DJI Matrice 400 (requires the Zenmuse L3 single gimbal connector) |
| Point Cloud Accuracy |
120 m altitude: 3 cm vertical, 4 cm horizontal (RMSE); 300 m altitude: 5 cm vertical, 7.5 cm horizontal (RMSE) |
| Point Cloud Thickness |
1.2 cm@1σ (120 m), 2 cm@1σ (300 m) |
| Combined Horizontal FOV (Dual RGB Cameras) |
107° |
| RGB GSD |
Average 3 cm (300 m nadir flight altitude) |
| Weight |
1.60 kg (without single gimbal connector; connector weighs 145 g) |
| Dimensions |
192×162×202 mm (L×W×H) |
| Power |
64 W (typical), 100 W (max) |
| Ingress Protection |
IP54 |
| Operating Temperature |
-20° to 50° C |
| Storage Temperature |
-40° to 70° C |
| Laser Wavelength |
1535 nm |
| Laser Beam Divergence |
0.25 mrad (1/e²) |
| Detection Range |
700 m@10% reflectivity (350 kHz); 950 m@10% reflectivity (100 kHz); 2000 m@80% reflectivity (100 kHz) |
| Ranging Accuracy |
Absolute ±10 mm; repeatability < 5 mm (1σ) |
| Minimum Effective Detection Distance |
10 m |
| Laser Pulse Emission Frequency |
100 kHz, 350 kHz, 1000 kHz, 2000 kHz |
| Number of Returns |
4, 8, 16 (100/350 kHz); 4, 8 (1000 kHz); 4 (2000 kHz) |
| Scanning Modes and FOV |
Linear: 80°×3°; Star Shaped: 80°×80°; Non Repetitive: 80°×80° |
| Laser Safety |
Class 1 (IEC 60825-1:2014) |
| RGB Mapping Camera |
Dual 4/3 CMOS, 100MP (12288×8192), 28 mm equivalent, f2.0 to f11 |
| Shutter |
Mechanical 2 to 1/2000 s (500,000 count); electronic 2 to 1/16000 s |
| Video |
4K 3840×2160@30fps, FHD 1920×1080@30fps, MP4 H.265 |
| POS Accuracy |
Yaw 0.02°, pitch/roll 0.01° (post processed, 1σ); RTK fix 1.0 cm + 1 ppm horizontal, 1.5 cm + 1 ppm vertical |
| Gimbal |
3 axis, angular accuracy ±0.01°; controllable pitch -120° to +60°, yaw -80° to +80° |
| Software |
DJI Pilot 2, DJI Terra, DJI Modify, DJI FlightHub 2 |

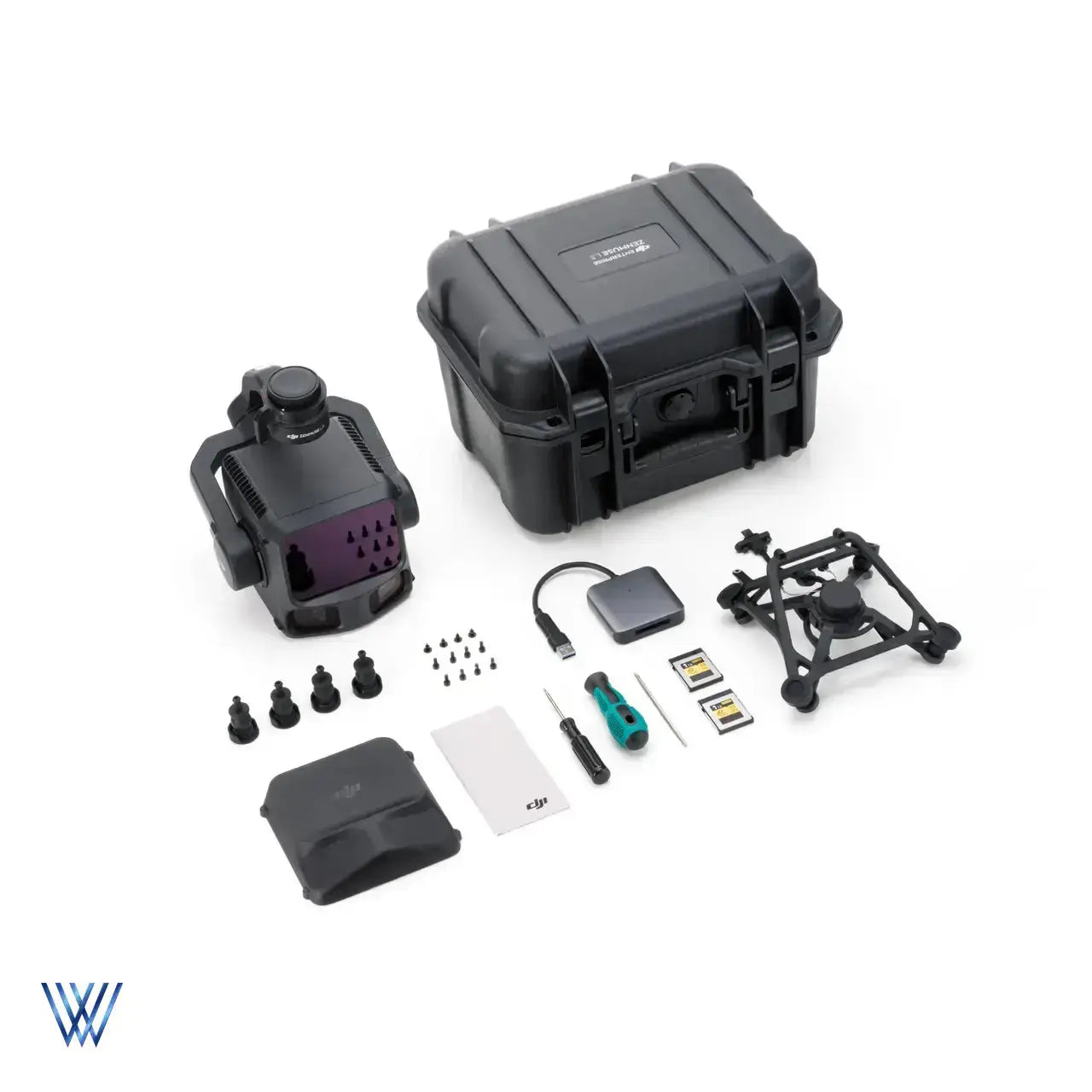

In the Box
- Zenmuse L3 x 1
- Zenmuse L3 Lens Cap x 1
- CFexpress Type B Memory Card (1 TB) x 2
- CFexpress Type B Card Reader x 1
- Zenmuse L3 Storage Case x 1
- Lens Cleaning Cloth x 1
- DJI Matrice 400 Carrying Case Insert (Zenmuse L3) x 1
- Zenmuse L3 Single Gimbal Connector x 1
- Screws and Tools x 1
- Zenmuse L3 Gimbal Damper (4 pcs) x 1
Frequently Asked Questions
Which drone is the DJI Zenmuse L3 compatible with?
It is compatible with the DJI Matrice 400 and requires the Zenmuse L3 single gimbal connector, which must be connected to the E1 port on the underside of the aircraft.
What is the detection range of the DJI Zenmuse L3?
Up to 950 m at 10% reflectivity at 100 kHz, 700 m at 10% reflectivity at 350 kHz and 2000 m at 80% reflectivity.
Which software works with the DJI Zenmuse L3?
Data is collected with DJI Pilot 2 and processed with DJI Terra; DJI Modify and DJI FlightHub 2 are also supported.
