Description
DJI Matrice 5TD Battery
Key Specifications
- Official DJI battery for the DJI Matrice 5TD, model BPX340-12138-21.42
- 12138 mAh capacity, 21.42 V, 260 Wh energy
- Li-ion 6S cells, LiNiMnCoO2 chemistry
- Powers up to 59 minutes of flight and 55 minutes of hover
- Swapped automatically by the DJI Dock 4 in under 25 seconds
- Charges from 15% to 95% in 27 minutes in the DJI Dock 4 battery compartment
- Up to 400 charge cycles
- Low-temperature self-heating and 1.8C max charging rate
- Doubles as DJI Dock 4 backup power, about 4.5 hours per battery
- 925 g, 96.02 × 67.7 × 172.9 mm
Product Description
The DJI Matrice 5TD Battery is the Intelligent Flight Battery of the DJI Matrice 5TD dock drone. DJI lists it as a spare and replacement part with model number BPX340-12138-21.42, and the official DJI Dock 4 kit includes four of them. Extra batteries keep the dock's swap compartments filled and give the system more backup power.
Built for Battery Swapping

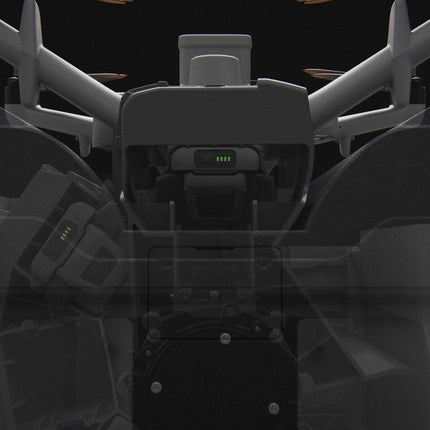

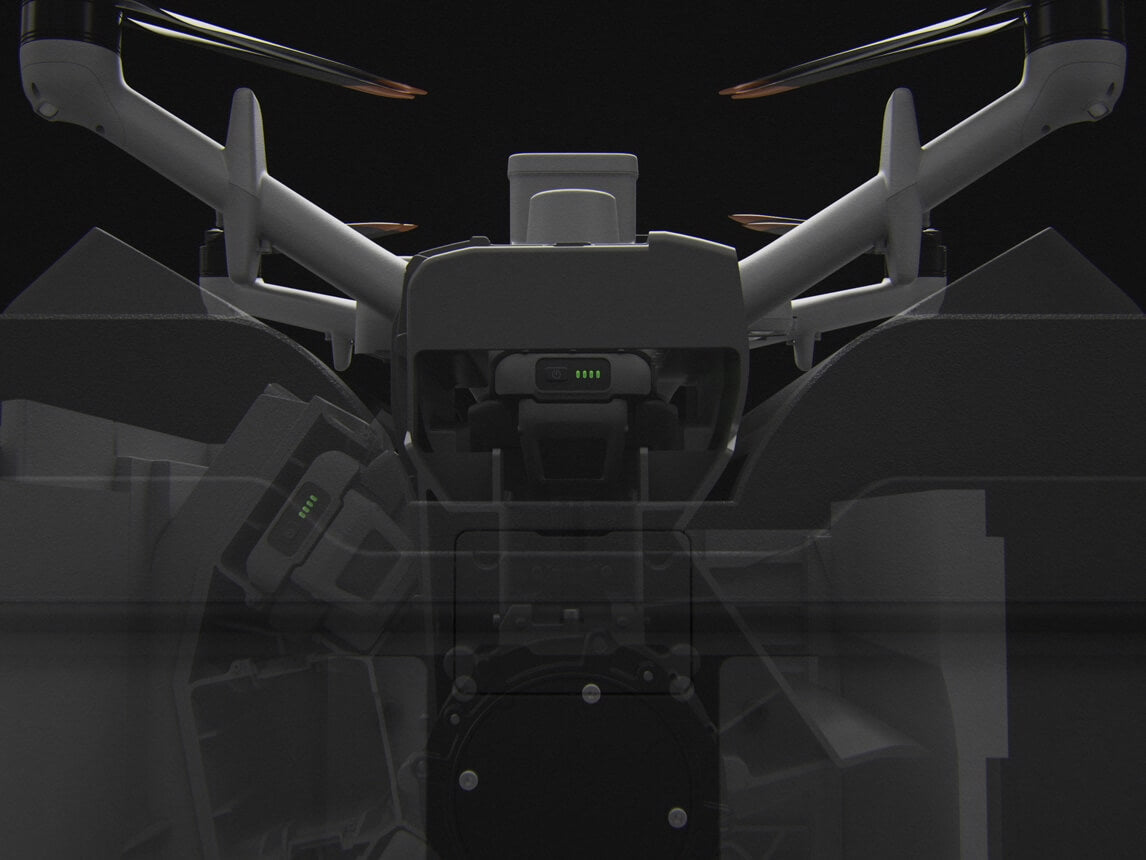

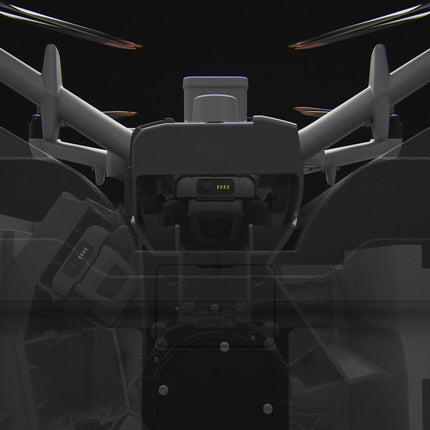

When the Matrice 5TD lands, the DJI Dock 4 swaps its battery in under 25 seconds and the drone can take off again in under 45 seconds. The dock has four battery compartments and can hold up to three batteries at a time, charging two in parallel. In the compartment, a battery charges from 15% to 95% in about 27 minutes at 25° C.
Long Flight Time
With 12138 mAh and 260 Wh, one battery powers up to 59 minutes of forward flight or 55 minutes of hovering on the Matrice 5TD, so a single sortie can cover more patrol points and inspection routes.
Ready for Hot and Cold Sites
The battery has the same operating temperature range as the aircraft, -40° to 50° C. In the cold it heats itself and keeps its temperature, and the dock preheats batteries before charging. Charging takes place between 10° and 55° C.
Backup Power for the Dock
Batteries in the compartment also act as backup power for the DJI Dock 4. If mains power fails, each battery can keep the dock running for about 4.5 hours, and with at least two batteries in the dock it can continue swapping batteries to keep missions going.
Technical Specifications
| Model |
BPX340-12138-21.42 |
| Capacity |
12138 mAh |
| Voltage |
21.42 V |
| Max Charging Voltage |
25.8 V |
| Cell Type |
Li-ion 6S |
| Chemical System |
LiNiMnCoO2 |
| Energy |
260 Wh |
| Weight |
925 g |
| Dimensions |
96.02 × 67.7 × 172.9 mm |
| Cycle Count |
400 |
| Charging Temperature |
10° to 55° C |
| Discharge Rate |
3C |
| Max Charging Power |
1.8C |
| Low-Temperature Charging |
Self-heating supported |
| Charging Time |
27 minutes (15% to 95%) in the DJI Dock 4 |
| Compatible Aircraft |
DJI Matrice 5TD |
In the Box
- DJI Matrice 5TD Battery × 1
Available Configurations
-
DJI Matrice 5TD Battery (BPX340-12138-21.42, 12138 mAh, 260 Wh)
Four DJI Matrice 5TD Batteries are included in the DJI Dock 4 kit.
FAQ
Which drone does the DJI Matrice 5TD Battery fit?
It is made for the DJI Matrice 5TD. It does not fit the Matrice 4D, Matrice 4TD or Matrice 4 Series.
How is the DJI Matrice 5TD Battery charged?
It charges automatically once it is installed in the battery compartment of the DJI Dock 4. The dock charges up to two batteries at the same time.
How many batteries can the DJI Dock 4 hold?
The DJI Dock 4 has four compartments and holds up to three batteries at a time so the swapping mechanism can work. The official kit comes with four batteries: one in the aircraft and three in the dock.
Does the DJI Matrice 5TD Battery work with the DJI O4 Ground Station?
No. The DJI O4 Ground Station has its own built-in backup battery. The DJI Matrice 5TD Battery is used in the Matrice 5TD and the DJI Dock 4.
How should I store the battery?
Store it at around 25° C, away from direct sun and extreme cold, and check the charge level every six months. Long storage above 35° C shortens battery life.
