Description
Canon RF S 14-30mm F4-6.3 IS STM PZ
Key Specifications
- Mount: Canon RF (APS C, RF S)
- Focal Length: 14-30mm (22.4-48mm equivalent)
- Maximum Aperture: f4-6.3
- Minimum Aperture: f22-36
- Lens Construction: 10 elements in 9 groups (2 PMo aspherical, 1 UD)
- Zoom: Internal power zoom
- Image Stabilizer: 5 stops (up to 7.5 stops with IBIS)
- Autofocus: STM
- Closest Focus: 0.15 m (0.38x max. magnification)
- Filter Size: 58mm
- Weight: Approx. 181 g
- Warranty: 1 Year Official Warranty
Product Description

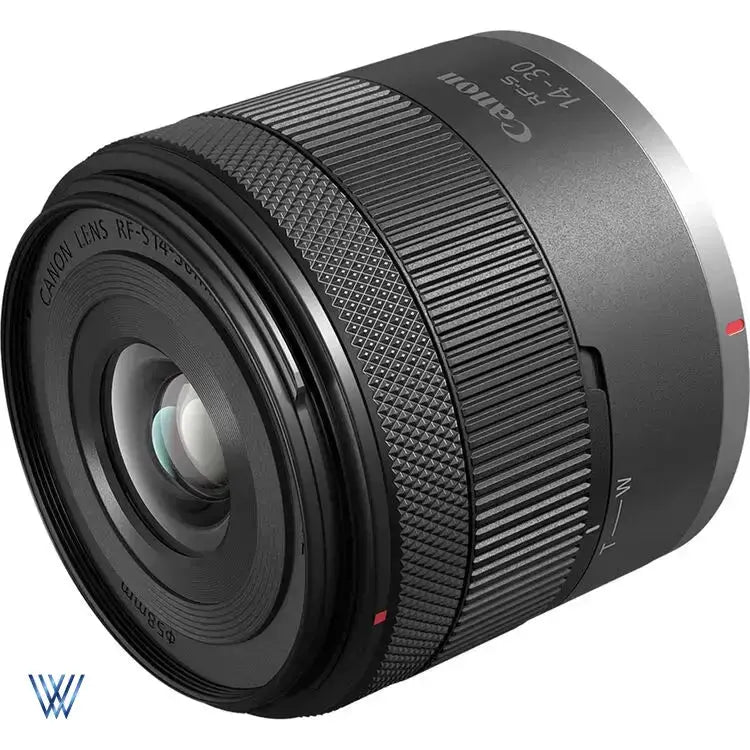

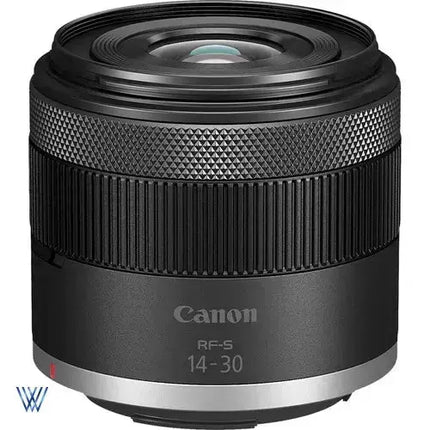

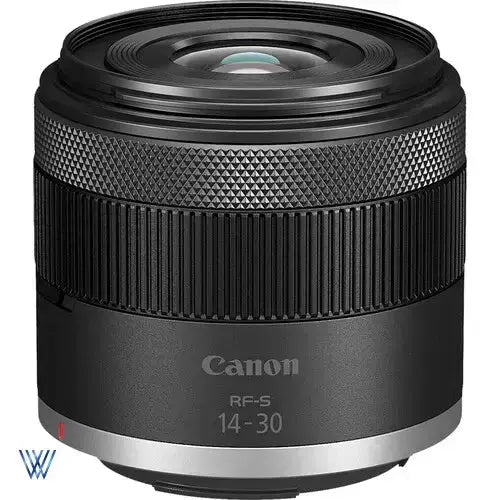

Canon RF S 14-30mm F4-6.3 IS STM PZ Lens is an ultra wide to standard power zoom lens for Canon APS C EOS R cameras, optimised for video creation. An internal power zoom with two step variable speed and 15 adjustable levels, 5 stop optical stabilisation and STM autofocus come in a light 181 g body.
14-30mm Focal Length
Ultra wide to standard focal length, optimised for video creation.
Power Zoom
Smooth zoom transitions with two step variable speed and 15 adjustable levels.
Combined Control and Focus Ring
Manual control over focus and easy adjustment of settings.
STM Autofocus
Smooth and silent focusing for video and stills.
Image Stabilisation
5 stops of optical IS, and up to 7.5 stops (centre) when combined with in body IS.
Close Focusing
Focuses down to 0.15 m with a maximum magnification of 0.38x.
Technical Specifications
| Lens Mount |
Canon RF (RF S, for APS C) |
| Image Size |
APS C |
| Focal Length |
14-30mm (35mm equivalent 22.4-48mm) |
| Angle of View (H, V, D) |
78° 05' to 41° 25', 56° 40' to 28° 15', 88° 30' to 48° 50' |
| Lens Construction |
10 elements in 9 groups |
| Special Optics |
2x PMo aspherical, 1x UD |
| Special Features |
Internal power zoom |
| Diaphragm Blades |
7 |
| Maximum Aperture |
f4-6.3 |
| Minimum Aperture |
f22-36 |
| Closest Focusing Distance |
0.15 m |
| Maximum Magnification |
0.38x |
| Image Stabilizer |
5 stops (OIS); IBIS + OIS centre 7.5 stops, corner 5.5 stops |
| AF Actuator |
STM |
| Control Ring |
Combined focus/control ring |
| Coatings |
Super Spectra |
| Dust/Moisture Resistance |
No |
| Extender Compatibility |
Not compatible |
| Compatible Hood / Case |
EW 63C / LP1014 |
| Filter Diameter |
58mm |
| Max. Diameter x Length |
69.6 x 62 mm |
| Weight |
Approx. 181 g |
| Warranty |
1 Year Official Warranty |
In the Box
- Canon RF S 14-30mm F4-6.3 IS STM PZ lens
- Lens Cap E 58II
- Lens Dust Cap RF
Frequently Asked Questions
Which cameras is this lens for?

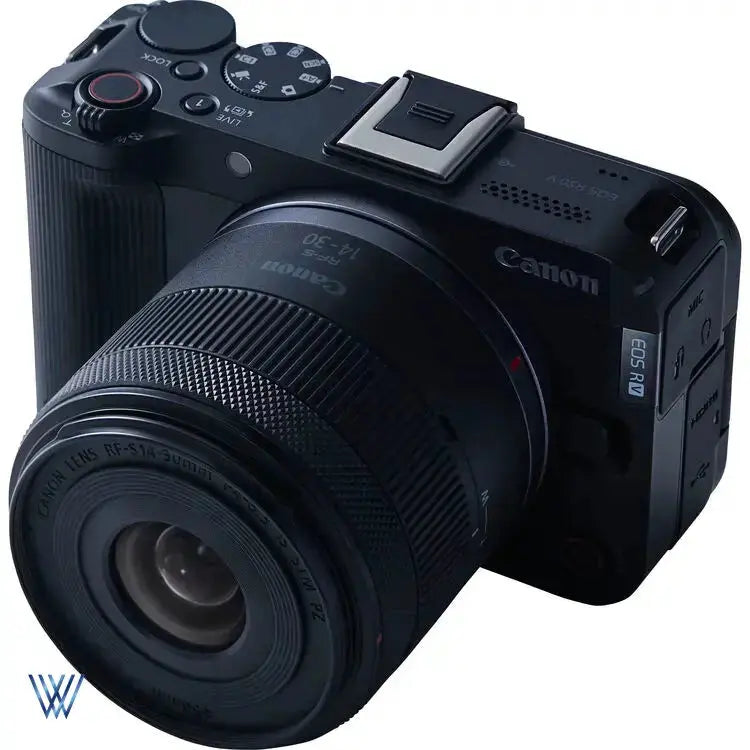

It is an RF S lens designed for Canon APS C EOS R cameras, where it gives a 22.4-48mm equivalent view.
Does it have power zoom?
Yes. It has an internal power zoom with two step variable speed and 15 adjustable levels for smooth zooming in video.
Does it have image stabilization?
Yes. Optical IS gives 5 stops of shake correction, and up to 7.5 stops (centre) with in body IS.
What filter size does it use?
It takes 58mm screw in filters.
Does the Canon RF S 14-30mm F4-6.3 IS STM PZ come with a warranty?
Yes, it comes with 1 Year Official Warranty.
Is the Canon RF S 14-30mm F4-6.3 IS STM PZ at Lens Ground genuine?
Yes. Every product sold by Lens Ground is 100% genuine.
