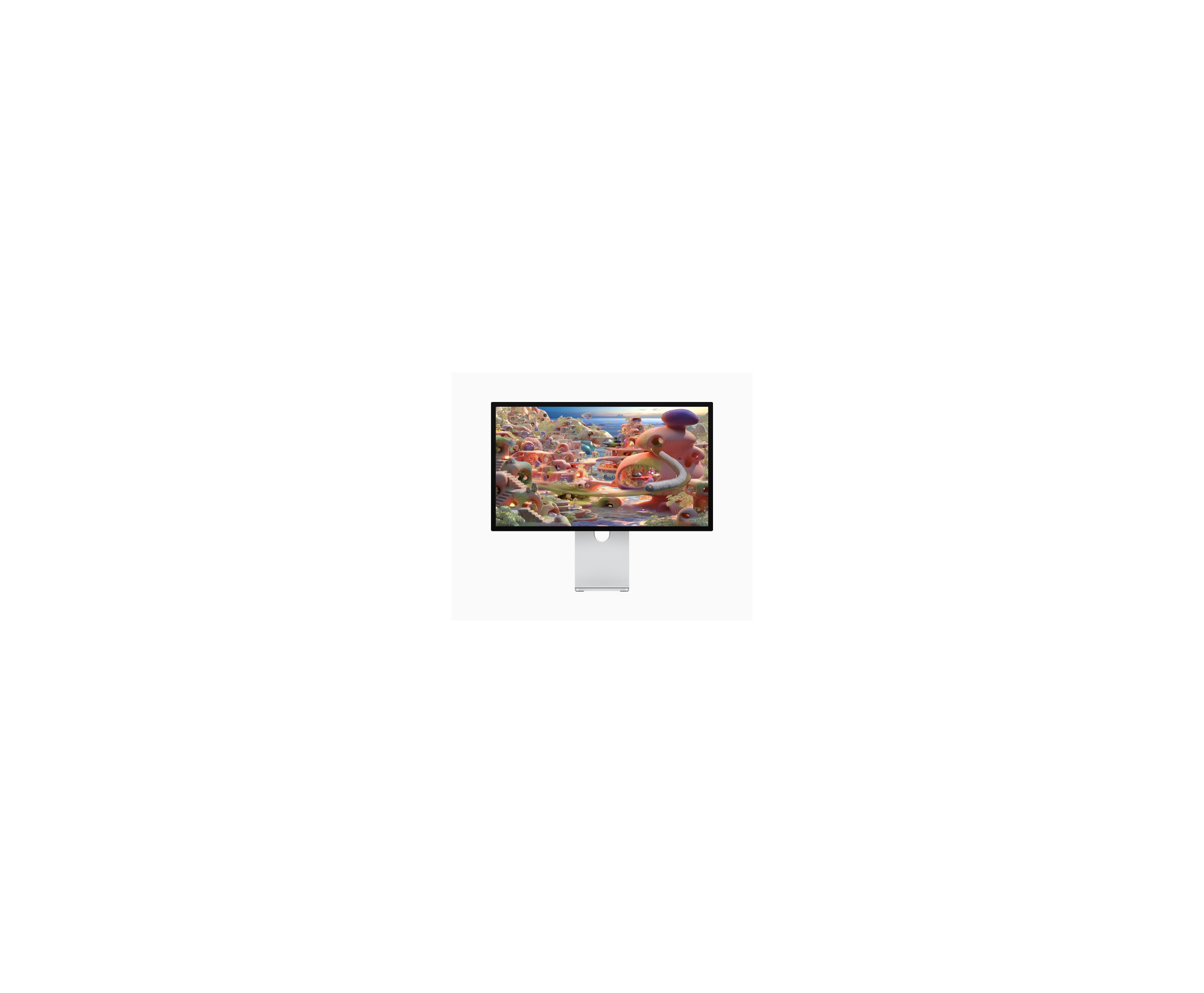

Apple Studio Display XDR
Key Specifications
- 27-inch 5K Retina XDR display, 5120 × 2880 at 218 ppi
- Mini-LED backlight with 2304 local dimming zones
- Up to 1000 nits SDR and 2000 nits peak HDR brightness
- 120Hz refresh rate with Adaptive Sync
- P3 and Adobe RGB wide colour gamuts, 1 billion colours, True Tone
- Glass: standard glass or nano-texture glass
- Stand: tilt- and height-adjustable stand or VESA mount adapter
- 12MP Center Stage camera with Desk View
- Six-speaker system with force-cancelling woofers and Spatial Audio
- Two Thunderbolt 5 ports (140W host charging) and two USB-C ports
- Warranty: 1 Year Official Warranty
Product Description

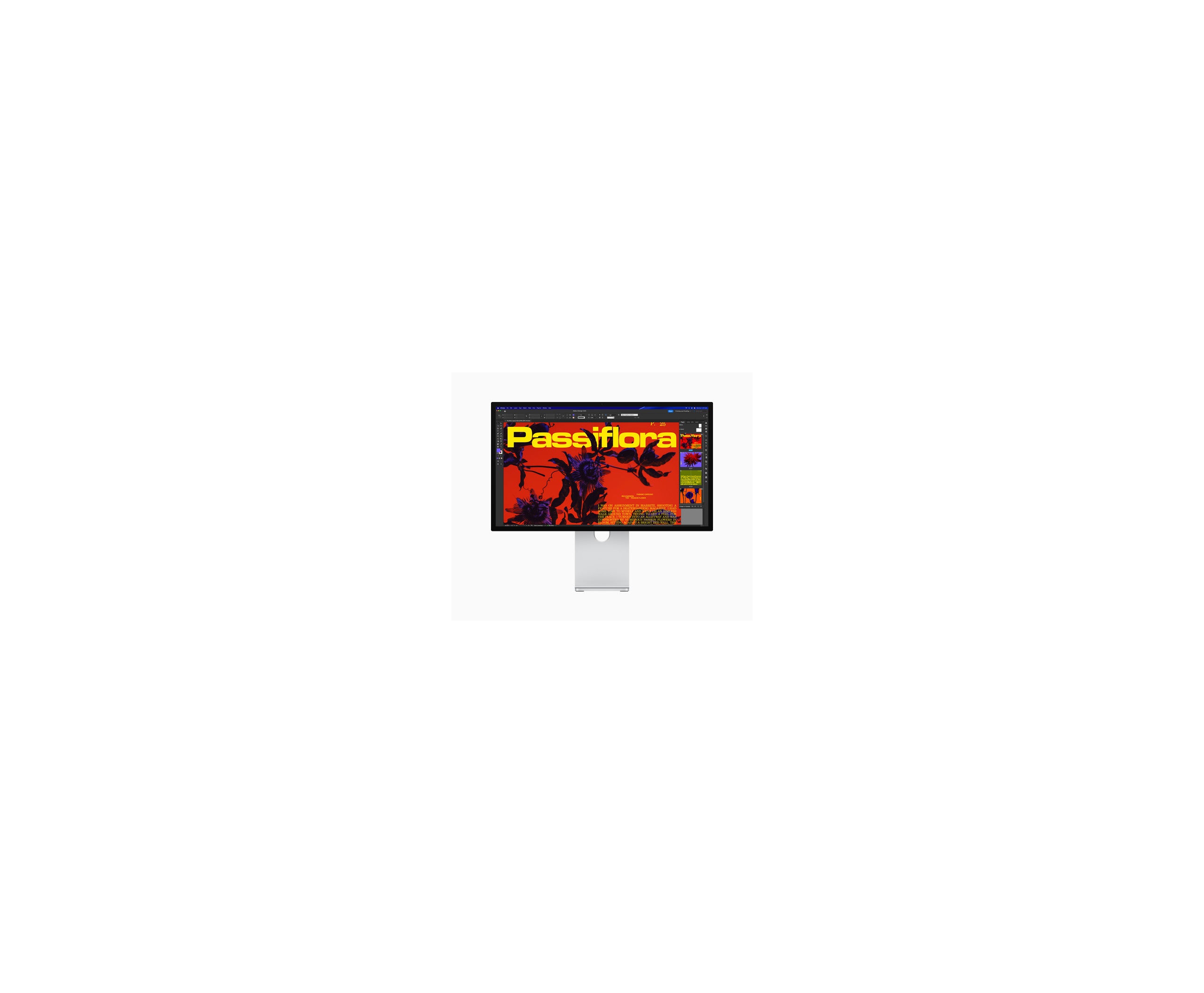

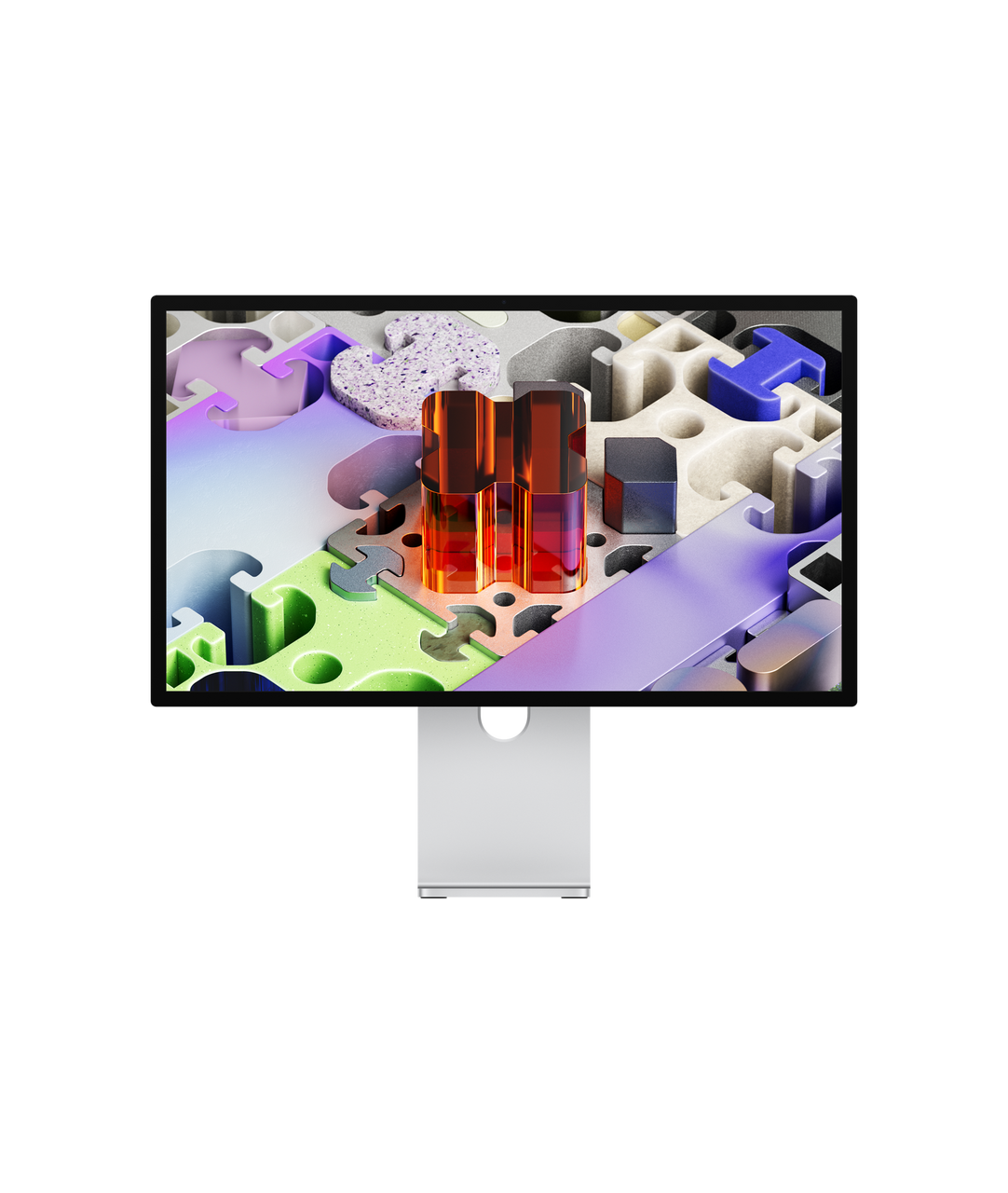

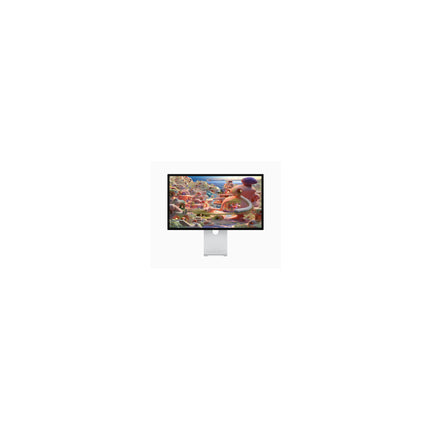

Apple Studio Display XDR is Apple's 27-inch 5K Retina XDR monitor with a mini-LED backlight, announced on 3 March 2026. It is made for video editors, colourists, photographers, designers and developers who need accurate HDR and wide colour on a Mac.
5K Retina XDR display
The 27-inch panel has 5120 × 2880 pixels at 218 ppi. A mini-LED backlight with 2304 local dimming zones gives up to 1000 nits for everyday SDR work and 2000 nits peak brightness for HDR. It supports P3 and Adobe RGB wide colour, 1 billion colours and True Tone, with a 120Hz refresh rate and Adaptive Sync.
Reference modes for pro work
Built-in reference modes cover HDR video, HDTV, digital cinema, design and print, photography and web work, plus medical imaging (DICOM) modes, so you can match the display to your project.
Camera, speakers and mics
The 12MP Center Stage camera keeps you in frame on video calls and supports Desk View. A six-speaker system with force-cancelling woofers plays Spatial Audio with Dolby Atmos, and a studio-quality three-mic array with beamforming picks up clear voice.
Thunderbolt 5 connectivity
One Thunderbolt 5 cable connects your Mac and charges it at up to 140W. A second Thunderbolt 5 port connects fast accessories or more displays, and two USB-C ports (up to 10Gb/s) connect peripherals, storage and networking.

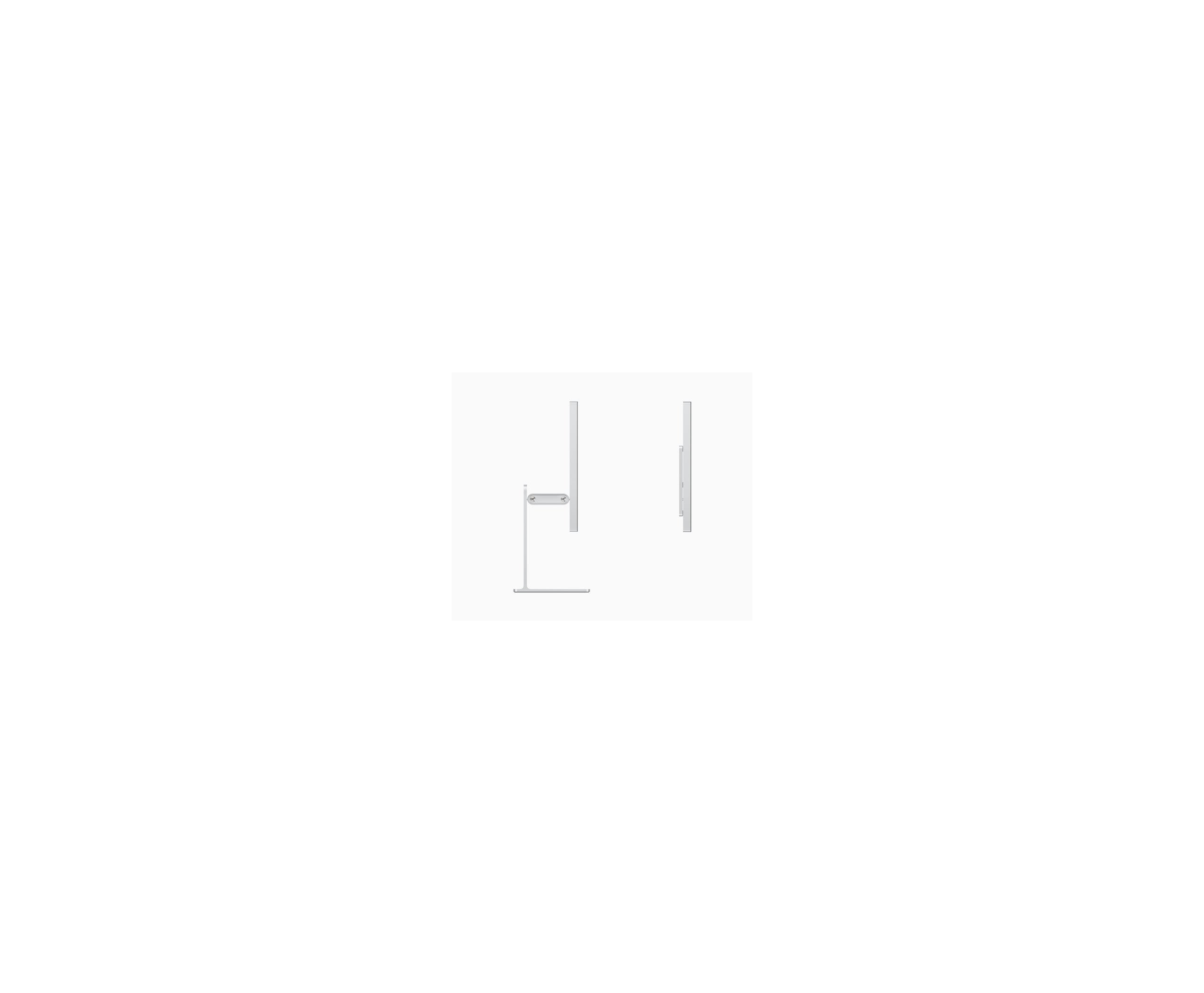

Stand, VESA mount adapter and glass
Choose the tilt- and height-adjustable stand (−5° to +25° tilt and 105 mm of height adjustment) or the VESA mount adapter for a compatible arm or wall mount in landscape or portrait. Standard glass has low reflectivity; nano-texture glass scatters light to cut glare further in bright rooms.
Technical Specifications
| Model |
Studio Display XDR (27-inch), announced 3 March 2026 |
| Display |
27-inch 5K Retina XDR, 5120 × 2880 at 218 ppi |
| Backlight |
Mini-LED with 2304 local dimming zones |
| Brightness |
Up to 1000 nits (SDR), 2000 nits peak (HDR) |
| Refresh Rate |
120Hz with Adaptive Sync (up to 60Hz on Macs with M1, M2 and M3 chips) |
| Colour |
1 billion colours, P3 and Adobe RGB wide colour gamuts, True Tone |
| Glass |
Standard glass or nano-texture glass |
| Reference Modes |
16 reference modes incl. HDR Video (P3-ST 2084), Digital Cinema (P3-DCI), Photography (Adobe RGB-D65) and Medical Imaging (DICOM) |
| Camera |
12MP Center Stage camera with Desk View |
| Audio |
Six-speaker system with force-cancelling woofers, Spatial Audio with Dolby Atmos, studio-quality three-mic array |
| Ports |
One upstream Thunderbolt 5 (host, 140W charging), one downstream Thunderbolt 5 (up to 120Gb/s), two USB-C (up to 10Gb/s) |

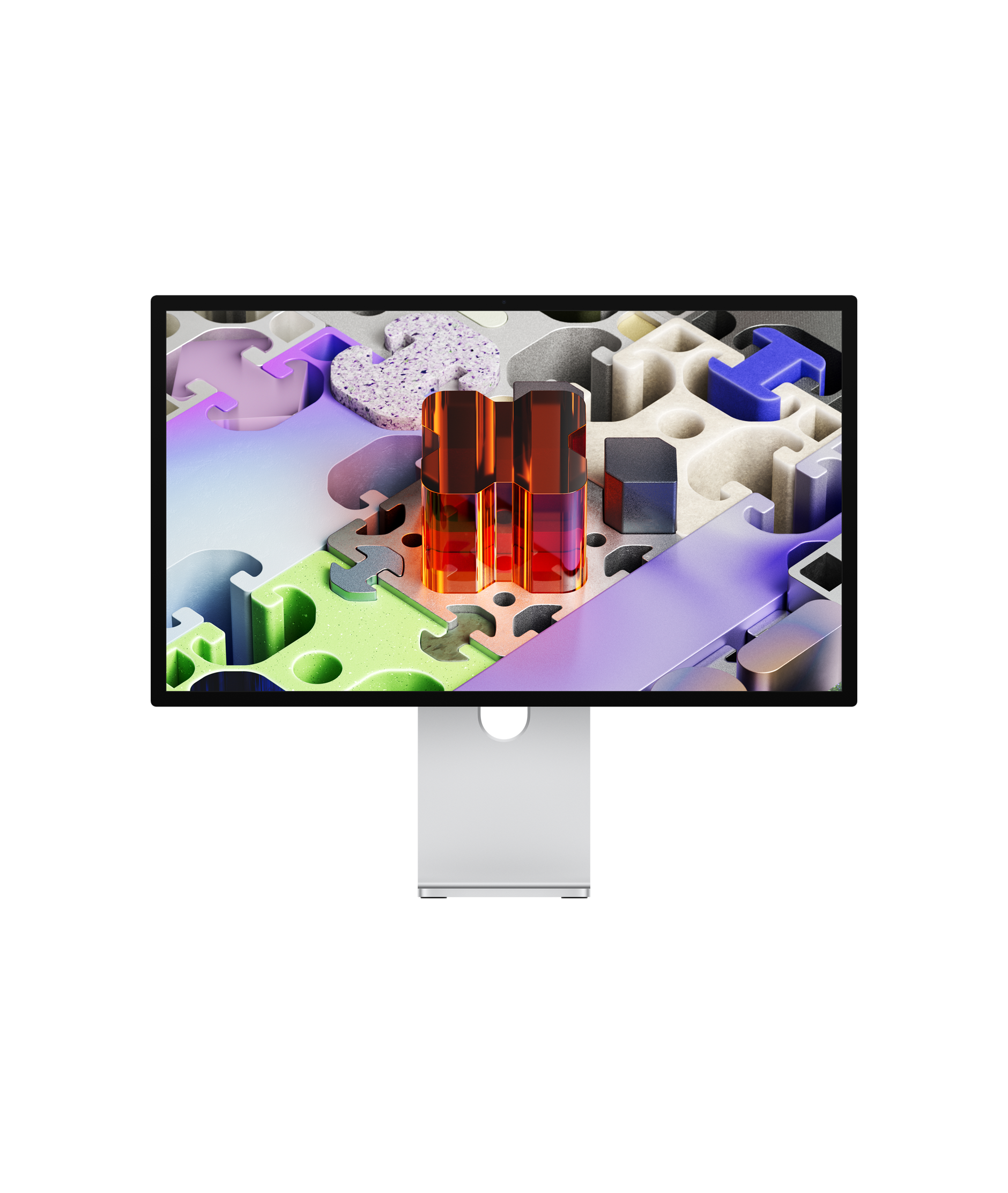

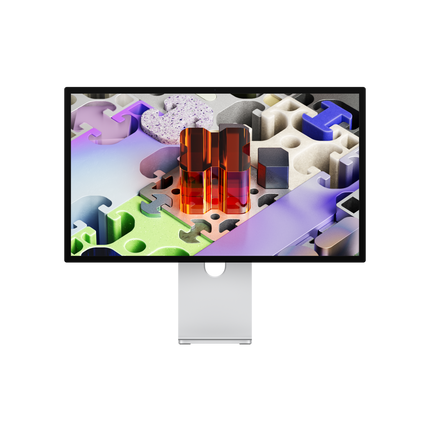

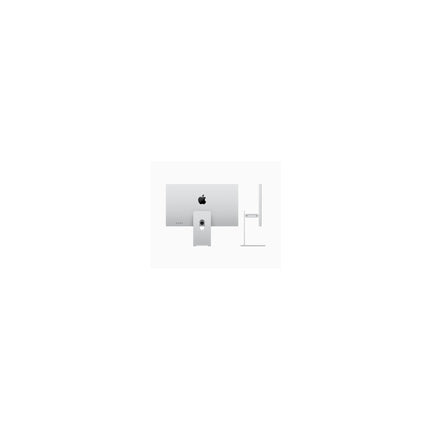

| Stand |
Tilt- and height-adjustable stand: tilt −5° to +25°, 105 mm height adjustment, landscape |

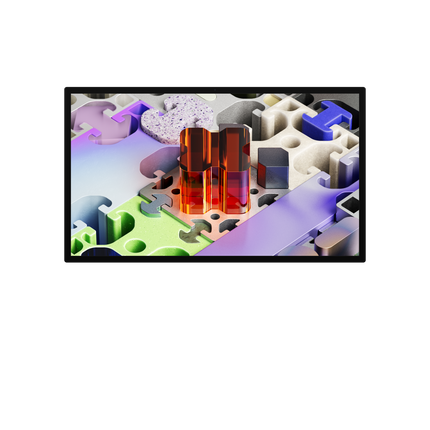

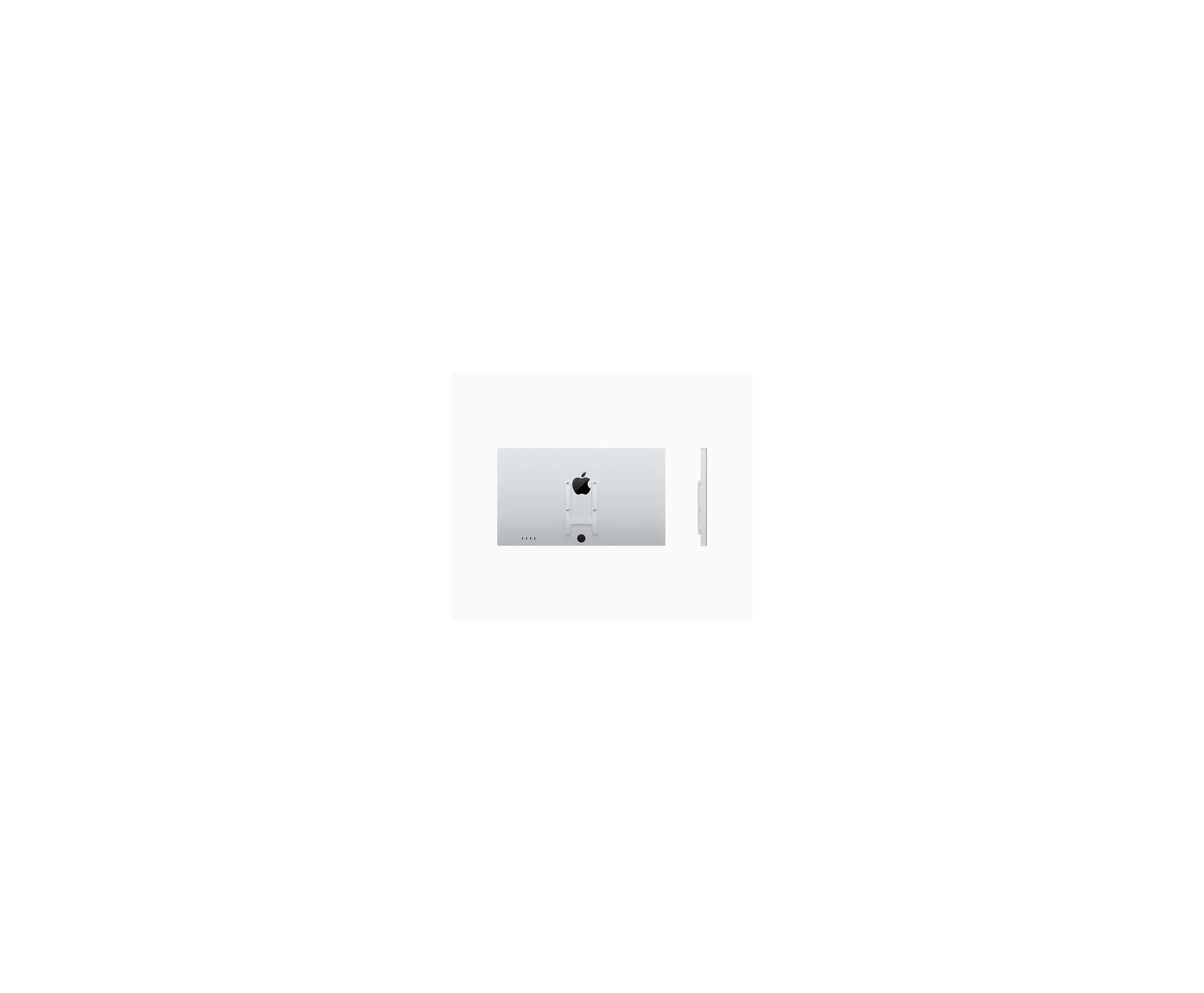

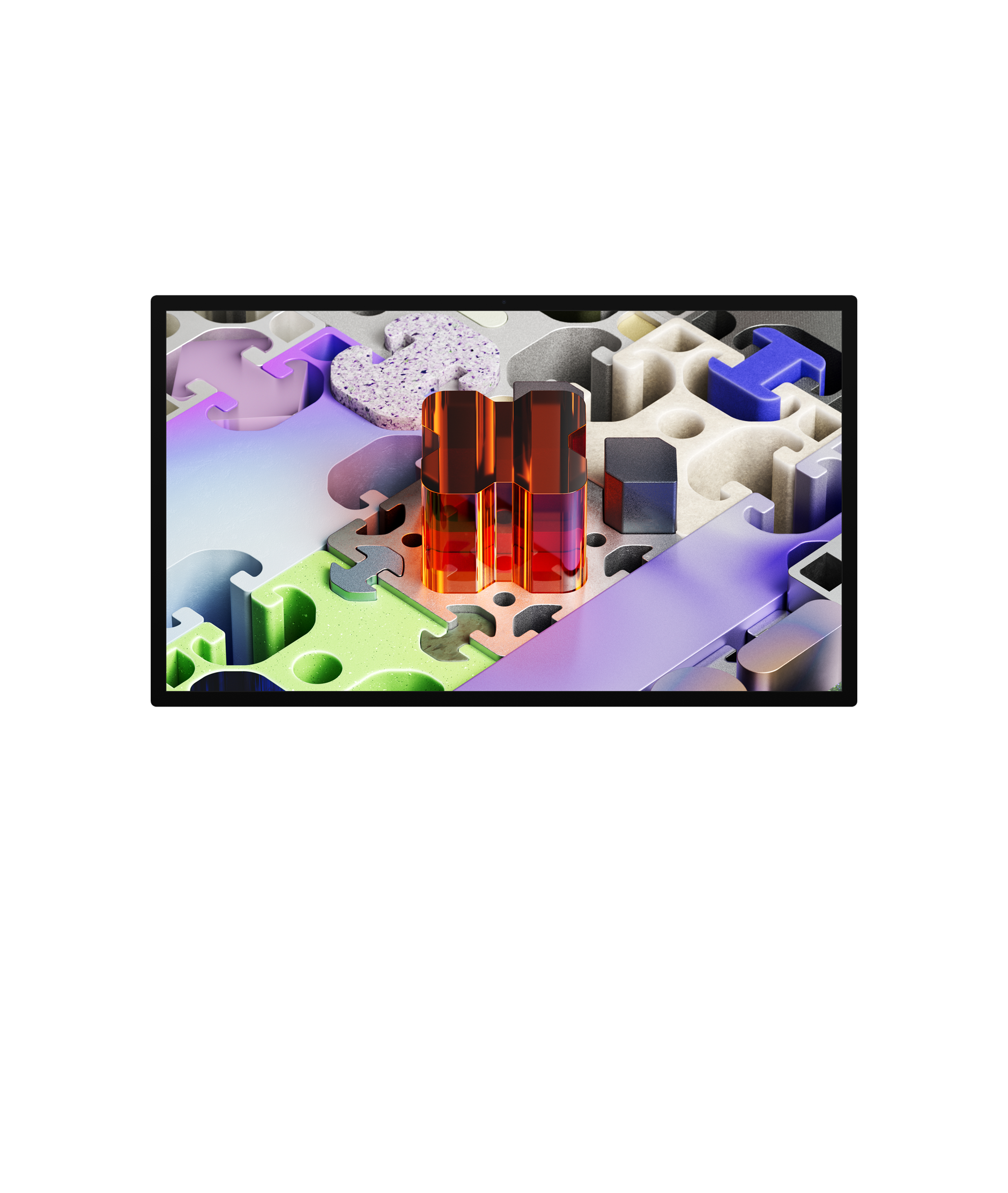

| VESA Mount Adapter |
100 × 100 mm VESA, landscape or portrait (mount not included) |

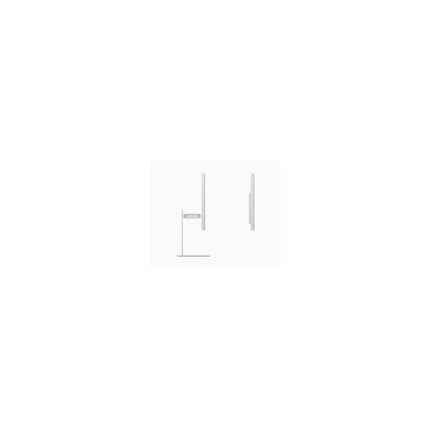

| Size (with stand) |
Height 47.8–58.3 cm, width 62.3 cm, depth 21.4 cm; 8.5 kg |
| Size (VESA mount adapter) |
Height 36.2 cm, width 62.3 cm, depth 3.3 cm; 6.3 kg |
| Compatibility |
Mac with Apple silicon on macOS Tahoe 26.3.1 or later; supported iPad Pro and iPad Air on iPadOS 26.3.1 or later |
| Power |
100–240V AC, 50Hz to 60Hz |
| Warranty |
1 Year Official Warranty |
In the Box
- Studio Display XDR with the stand (or VESA mount adapter) and glass you choose
- Thunderbolt 5 (USB-C) Pro Cable (1 m)
Available Configurations
- Stand: Tilt- and height-adjustable stand or VESA mount adapter
- Glass: Standard glass or Nano-texture glass
- Warranty: 1 Year Official Warranty
Our team confirms the exact configuration with your order.
Frequently Asked Questions
What is the difference between Studio Display XDR and Studio Display?
Studio Display XDR has a mini-LED backlight with 2304 dimming zones, up to 2000 nits peak HDR brightness, P3 and Adobe RGB colour, a 120Hz refresh rate and 140W host charging. Compare it with the Apple Studio Display.
Which Macs work with the Studio Display XDR?
It works with Macs with Apple silicon on macOS Tahoe 26.3.1 or later. Macs with M1, M2 and M3 chips run it at up to 60Hz; all other features are supported. It pairs well with the Apple Mac Studio M5 Max.
Does it come with a stand?
Choose the tilt- and height-adjustable stand, or the VESA mount adapter if you will use your own arm or wall mount (mount not included).
Does the Apple Studio Display XDR come with a warranty?
Yes, it comes with 1 Year Official Warranty.
Is the Apple Studio Display XDR at Lens Ground genuine?
Yes. Every product sold by Lens Ground is 100% genuine.
